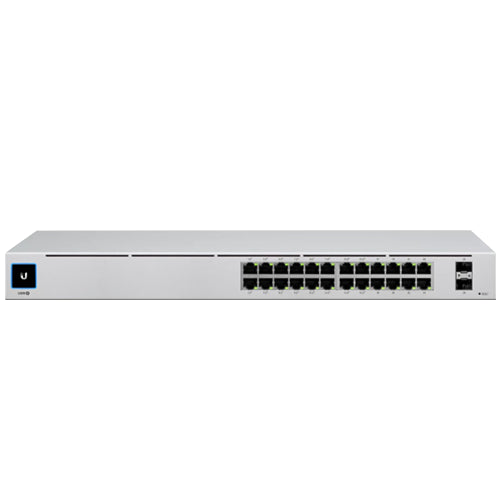

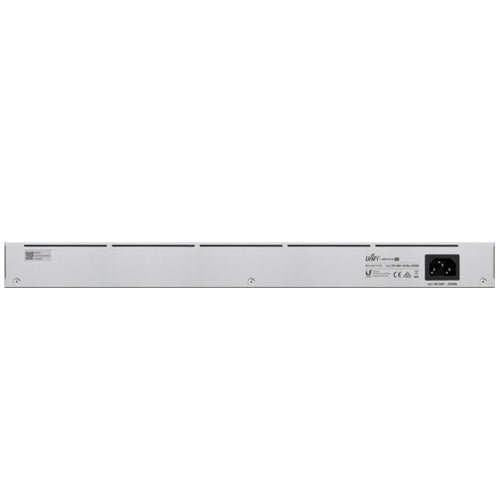

Ubiquiti USW-24-POE UniFi Gen2 24-Port Managed GbE PoE+

Ubiquiti USW-24-POE UniFi Gen2 24-Port Managed GbE PoE+

Ubiquiti USW-24-POE UniFi Gen2 24-Port Managed GbE PoE+

SKU: USW-24-POE

Only 5 products left!

Regular price $379.00

Key Features

  • 24 Gigabit Ethernet ports with PoE support
  • 2 SFP uplink ports for fiber connectivity
  • UniFi Network Controller integration
  • Rack-mountable design with silent cooling
  • VLAN, QoS, and traffic management support
  • Energy-efficient and reliable performance
Dispatch in: Calculating...
  • guaranteeQuality checked
  • Flat ShippingFlat on all products
  • Free return Within 30 days

Brand Ubiquiti Networks
Number of Ports 24
Included Components Rack Mount Hardware
Color Grey
Compatible Devices Computer, Laptop, Server
Switching Capacity 52 Gbps
Forwarding Rate 39 Mpps
Supported VLANs 1000
Total Non-Blocking Throughput 26 Gbps
MAC Address Table Size 8000
Packet Buffer Size 0.5 MB
IPv4 128
1 GbE RJ45 24 (16 PoE+) (1G/100M/10M)
1G SFP 2 (1G)
Max. PoE Output Up to PoE+
Total PoE Availability 95W
Form Factor Rack mount (1U)
LACP Port Aggregation
STP & RSTP
Advanced IGMP Configuration
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
PoE Ports/PoE+ 16
PoE 15.4W
PoE+ 32W
Max. Power Consumption 25W
Power Method Universal input, 100—240V AC, 50/60 Hz
Power Input Method AC input
Power Supply AC/DC, internal, 120W
Supported Voltage Range 100—240V AC
Management Ethernet AR
Heat Dissipation 85.3 BTU/hr
Weight 3 kg (6.6 lb),3.1 kg (6.8 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 400~1200 mm (15.7-47.2″)
LCM Display 1.3″ touchscreen
ESD Protection Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature -5 to 40° C (23 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant
Certifications CE, FCC, IC, Anatel
UniFi Network Version 7.2.94 and later
Dimensions 442 x 200 x 44 mm (17.4 x 7.9 x 1.7″)


Key Features

  • 24 Gigabit Ethernet ports with PoE support
  • 2 SFP uplink ports for fiber connectivity
  • UniFi Network Controller integration
  • Rack-mountable design with silent cooling
  • VLAN, QoS, and traffic management support
  • Energy-efficient and reliable performance
