Network Switches
| Specification | Details |
|---|---|

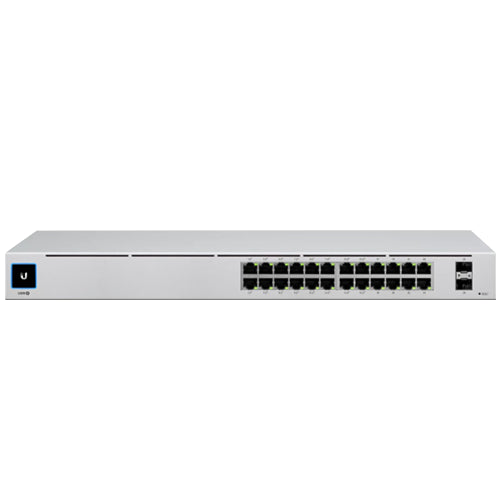

| Model | USW-24-POE |
| Dimensions | 442 x 200 x 44 mm (17.4 x 7.9 x 1.7") |
| Weight (Without Mounting Brackets) | 3 kg (6.6 lb) |
| Weight (With Mounting Brackets) | 3.1 kg (6.8 lb) |
| Enclosure Material | SGCC steel |
| Form Factor | Rack mount (1U) |
| Supported Rack Depth | 400–1200 mm (15.7–47.2") |
| Networking Interfaces | (24) 1 GbE RJ45 ports (16 PoE+); (2) 1G SFP ports |
| Management Interface | Ethernet, AR |
| Switching Capacity | 52 Gbps |
| Total Non-Blocking Throughput | 26 Gbps |
| Forwarding Rate | 39 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| Layer 2 Features | LACP Port Aggregation, STP & RSTP, Advanced IGMP (Querier, Fast Leave, Router Port), IGMP Snooping, 802.1X Control, MAC-Based ACLs & Device Isolation, DHCP Snooping & Guarding, Egress Rate Limit, Flow Control, Storm Control, Multicast & Broadcast Rate Limiting, MAC Address Blocking, IP-Based ACLs & Network Isolation, MAC-Based Port Restriction, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection |
| PoE Ports | 16 PoE+ |
| Max. PoE Wattage per Port by PSE (PoE) | 15.4W |
| Max. PoE Wattage per Port by PSE (PoE+) | 32W |
| Total PoE Availability | 95W |
| Max. Power Consumption (Excluding PoE Output) | 25W |
| Max. Power Consumption (Including PoE Output) | 120W |
| Power Method | Universal input, 100—240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 120W |
| Supported Voltage Range | 100—240V AC |
| Heat Dissipation (Excluding PoE Output) | 85.3 BTU/hr |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| ESD/EMP Protection | Air: ± 16kV, Contact: ± 12kV |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Key Features
- 48 x Gigabit Ethernet Ports
- 32 x PoE+ Compliant Ports
- 4 x Gigabit SFP Ports
- Desktop and Rack-Mountable
- 1.3" LCD Touchscreen
- Quiet, Fanless Design
- Supports UniFi Network Controller
