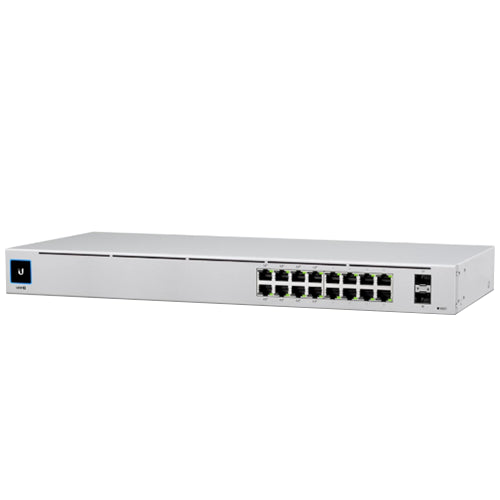

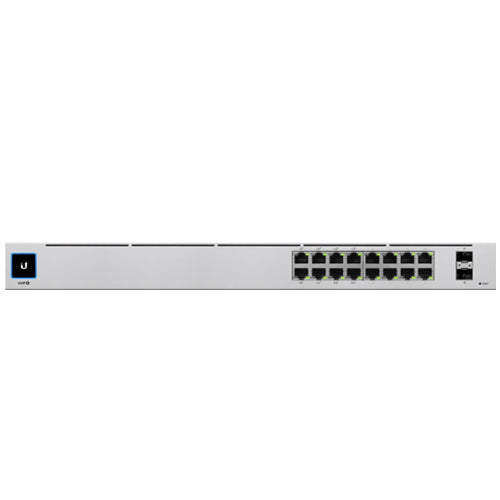

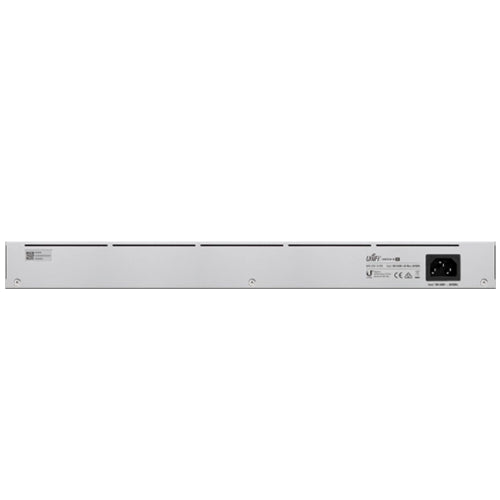

Ubiquiti UniFi USW-16-POE 16 Port Switch with PoE+

Ubiquiti UniFi USW-16-POE 16 Port Switch with PoE+

star star star star star
(5.0)

SKU: USW-16-POE

$298.00
5 in Stock
Dispatch by Today within:
9 hrs 32 mins

Key Features

  • 16 Gigabit Ethernet ports with PoE support
  • 2 SFP uplink ports for fiber connectivity
  • Centralized management through UniFi Controller
  • Fanless, silent operation
  • Rack-mountable 1U form factor
  • VLAN, QoS, and advanced traffic control features
Brand Ubiquiti
Number of Ports 16
Compatible Devices Desktop
Switch Type Touch Switch
Platform Not Machine Specific
Switching Capacity 36 Gbps
Forwarding Rate 27 Mpps
Supported VLANs 1000
Total Non-Blocking Throughput 18 Gbps
MAC Address Table Size 8000
Packet Buffer Size 0.5 MB
IPv4 128
1 GbE RJ45 16 (8 PoE+) (1G/100M/10M)
1G SFP 2 (1G)
Max. PoE Output Up to PoE+
Total PoE Availability 42W
Form Factor Rack mount (1U)
LACP Port Aggregation
STP & RSTP
Advanced IGMP Configuration
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
PoE Ports/PoE+ 8
PoE 15.4W
PoE+ 32W
Max. Power Consumption 18W
Power Method Universal input, 100—240V AC, 50/60 Hz
Power Input Method AC input
Power Supply AC/DC, internal, 60W
Supported Voltage Range 100—240V AC
Management Ethernet AR
Heat Dissipation 61.416 BTU/hr
Weight 2.9 kg (6.4 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 400~1200 mm (15.7-47.2″)
LCM Display 1.3″ touchscreen
ESD Protection Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature -5 to 40° C (23 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant
Certifications CE, FCC, IC, Anatel
UniFi Network Version 7.2.94 and later
Dimensions 442 x 200 x 44 mm (17.4 x 7.9 x 1.7″)
