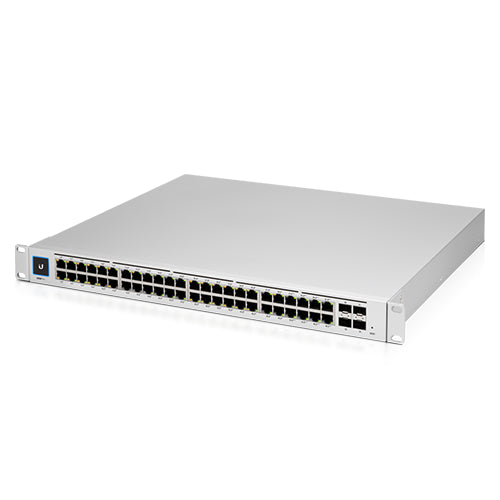

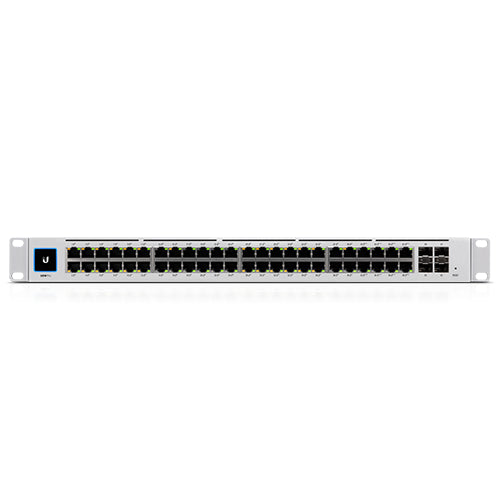

Ubiquiti UniFi USW-PRO-48 Managed 48-port Gigabit Switch with SFP+

Ubiquiti UniFi USW-PRO-48 Managed 48-port Gigabit Switch with SFP+

star star star star star
(5.0)

SKU: USW-Pro-48

$599.00
5 in Stock
Dispatch by Today within:
9 hrs 32 mins

Key Features

  • 48× Gigabit RJ45 ports
  • 4× 10G SFP+ uplink ports
  • Layer 3 capabilities with static routing
  • 1.3" touchscreen for device monitoring
  • Near-silent, fanless cooling design
  • Seamless UniFi Network Controller integration
  • Rackmount form factor for data centers or IT closets
Brand Ubiquiti Networks
Number of Ports 48
Included Components Has a 48-port, Layer 3 switch
Color Information Not Available
Compatible Devices Desktop
1 GbE RJ45 48 (1G/100M/10M)
10G SFP+ 4 (10G/1G)
Redundancy DC Power Backup
Layer 3
Form Factor Rack mount (1U)
Switching Capacity 176 Gbps
Total Non-Blocking Throughput 88 Gbps
Forwarding Rate 131 Mpps
Supported VLANs 1000
MAC Address Table Size 16000
ARP Entries 4000
IPv4 Routes 1000
Packet Buffer Size 4 MB
IPv4 128
MAC 128
DHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)
LACP Port Aggregation
STP & RSTP
QoS (DSCP)
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
Max. Power Consumption 60W
Power Method (1) Universal input, 100—240V AC, 50/60 Hz
Power Input Method AC input
Power Supply AC/DC, internal, 60W
Supported Voltage Range 100—240V AC
Management Ethernet AR
Heat Dissipation (Excluding PoE Output) 204.72 BTU/hr
Weight Without mounting brackets: 4 kg (8.8 lb) With mounting brackets: 4.1 kg (9 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 400~1200 mm (15.7-47.2″)
LCM Display 1.3″ touchscreen
ESD Protection Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature -5 to 40° C (23 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant
UniFi Network Version 5.12.11 and later
Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7″)
