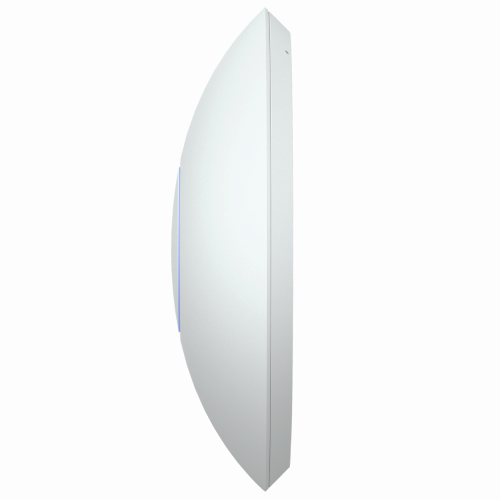

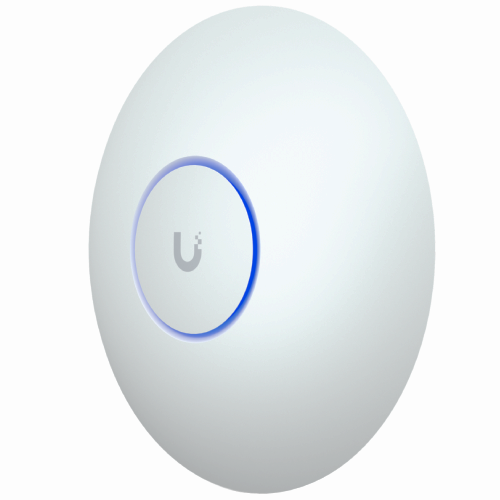

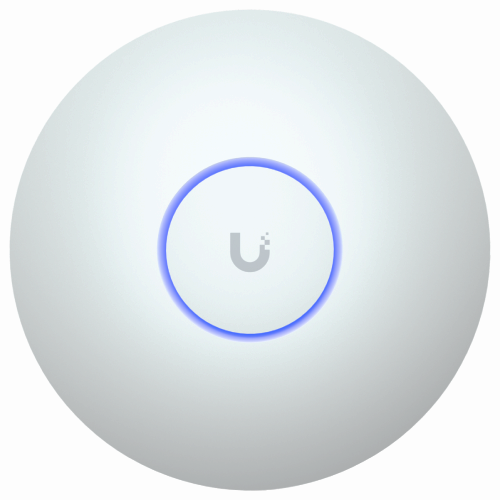

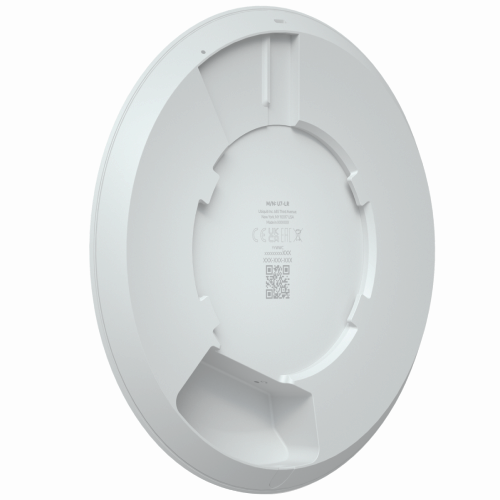

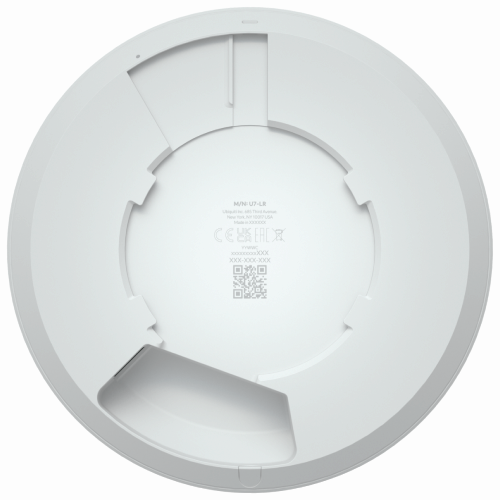

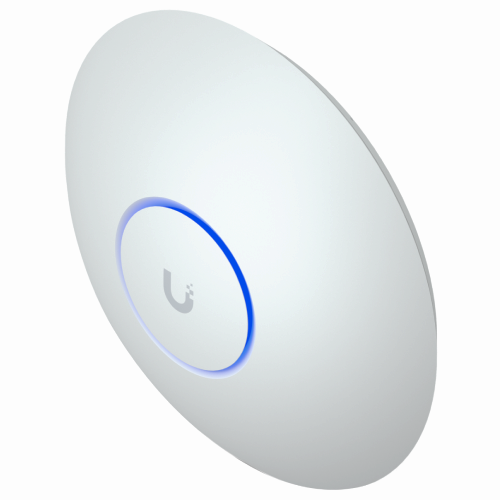

Ubiquiti U7-LR Long Range WiFi 7 Access Point

Ubiquiti U7-LR Long Range WiFi 7 Access Point

Ubiquiti U7-LR Long Range WiFi 7 Access Point

SKU: U7-LR

Only 5 products left!

Regular price $159.00

Key Features

  • Tri-band Wi-Fi 7: 6 GHz, 5 GHz, 2.4 GHz
  • 5 spatial streams (3x3 on 5 GHz, 2x2 on 2.4 GHz)
  • Peak speeds: Up to 4.3 Gbps (5 GHz), 688 Mbps (2.4 GHz)
  • 2.5 GbE PoE+ uplink port
  • Supports 300+ concurrent clients
  • Coverage: Up to 160 m² (1,750 ft²)
  • Silent, fanless design
  • Ceiling or wall mountable
  • Managed via UniFi Network Controller
Dispatch in: Calculating...
  • guaranteeQuality checked
  • Flat ShippingFlat on all products
  • Free return Within 30 days

Brand Ubiquiti Networks
Model Name U7-LR
Special Feature WiFi 7, PoE+, 5 Spatial Streams
Frequency Band Class Quad-Band
Communication Standard 802.11.be Wireless
Compatible Devices IoT Devices, Laptops, Tablet
Frequency 2.4 GHz
Uses For Product Business, Enterprise WiFi
Included Components Mounting Hardware, Access Point
Connectivity Technology Wi-Fi, Ethernet
WiFi Standard WiFi 7
Spatial Streams 5
Coverage Area 160 m² (1,750 ft²)
Max. Client Count 300+
Uplink 2.5 GbE
Mounting Ceiling, Wall (Plastic Mounting Plate included)
Power Method PoE
MIMO
5 GHz 3 x 3 (DL/UL MU-MIMO)
2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz 4.3 Gbps (BW160)
2.4 GHz 688 Mbps (BW40)
Antenna Gain
5 GHz 6 dBi
2.4 GHz 4 dBi
Max. TX Power
5 GHz 27 dBm
2.4 GHz 26 dBm
Supported Data Rates
802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5) 6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n 6.5 Mbps to 450 Mbps (MCS0 – MCS23 , HT 20/40)
Features
Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Hardware
Max. Power Consumption 14W
Includes PoE Adapter
Supported Voltage Range 42.5—57V DC
Networking Interface (1) 2.5 GbE RJ45 port
Weight 448 g (15.8 oz)
Management Ethernet
Enclosure Material Polycarbonate, aluminum alloy
Mount Material Polycarbonate, galvanized steel (SGCC)
LEDs
System White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
NDAA Compliant
Certifications CE, FCC, IC
Ambient Operating Temperature -30 to 50° C (-22 to 122° F)
Ambient Operating Humidity 5 to 95% noncondensing
Software
UniFi Network Version 9.1.120 and later
Mobile App iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
Dimensions Ø175.7 x 43 mm (Ø6.9 x 1.7″)


Key Features

  • Tri-band Wi-Fi 7: 6 GHz, 5 GHz, 2.4 GHz
  • 5 spatial streams (3x3 on 5 GHz, 2x2 on 2.4 GHz)
  • Peak speeds: Up to 4.3 Gbps (5 GHz), 688 Mbps (2.4 GHz)
  • 2.5 GbE PoE+ uplink port
  • Supports 300+ concurrent clients
  • Coverage: Up to 160 m² (1,750 ft²)
  • Silent, fanless design
  • Ceiling or wall mountable
  • Managed via UniFi Network Controller
