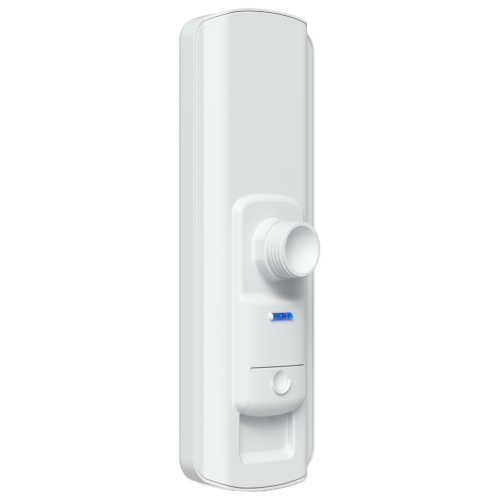

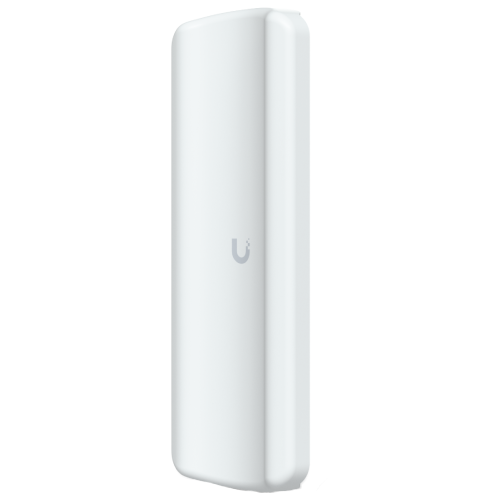

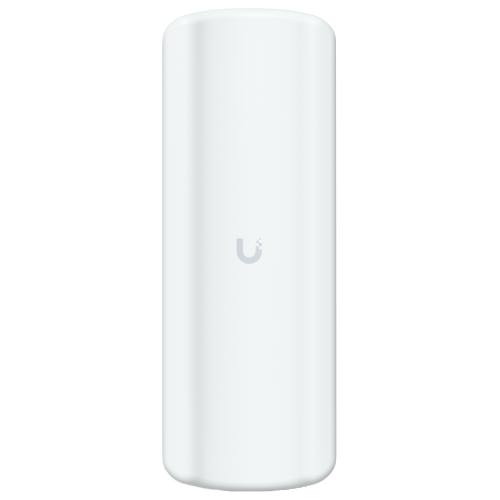

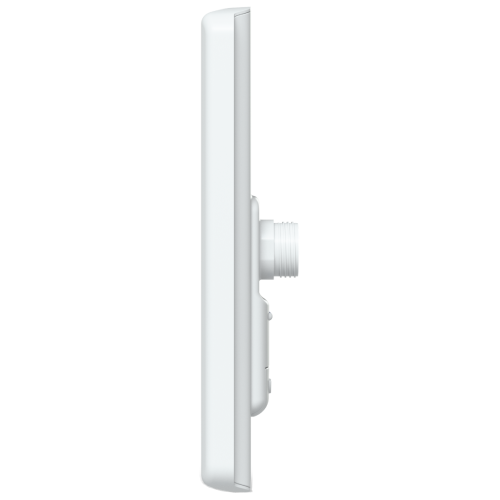

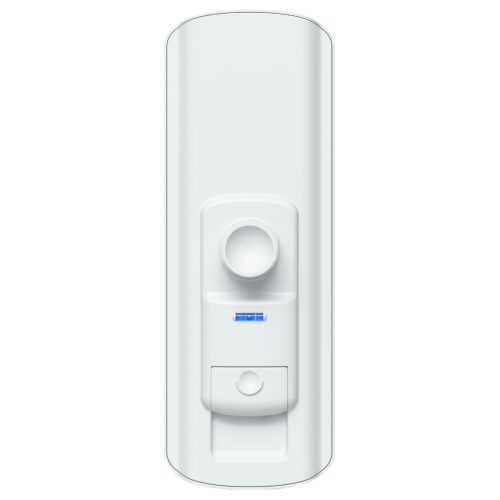

Ubiquiti UniFi Device Bridge Pro Sector (UDB-Pro-Sector)
SKU: UDB-Pro-Sector
$199.00
5 in Stock
Dispatch by Today within:
9 hrs 32 mins
Key Features
- Operates on 5 GHz with Wi‑Fi 5 (802.11ac)
- Up to 400 Mbps real-world throughput
- 2×2 MIMO with integrated 17 dBi sector antenna
- Supports 50+ UDB-Pro clients over distances of 5 km+
- One Gigabit RJ45 port: PoE in + PoE passthrough out
- Compact and efficient (< 6 W power use)
- Durable IPX6 housing for harsh outdoor conditions
- Automatic deployment via UniFi Auto-Link
- Pole-mount bracket included (24–60 mm diameter supported)
| Brand | Ubiquiti |
| Model name | Unifi Device Bridge Pro Sector |
| Special feature | Point-to-point connection |
| Frequency band class | Single-Band |
| Communication standard | 802.11ac Wireless |
| Compatible devices | unifi network devices |
| Frequency | 5 Hz |
| Uses for product | Network Bridge |
| Included components | Mounting material |
| Connectivity technology | Wi-Fi, Ethernet |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Pole |
| Weatherproofing | IPX6 |
| Power Method | PoE |
| MIMO | |
| 5 GHz | 2 x 2 |
| Max. Data Rate | |
| 5 GHz | 400 Mbps (BW40) |
| Antenna Gain | |
| 5 GHz | 17 dBi |
| Max. TX Power | |
| 5 GHz | 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| Supported Data Rates | |
| 802.11ac (WiFi 5) | 6.5 Mbps to 400 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (1) GbE RJ45 port |
| Antennas | Internal |
| Management | Ethernet WiFi |
| Channel Bandwidth | 20/40 MHz |
| Wind Loading | 128.2N at 200 km/h |
| Weight | Device: 782 g (1.7 lb) With mount: 835 g (1.8 lb) |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Pole Mount Diameter | 0.9—2.4″ (24—60 mm) |
| Button | (1) Factory-reset |
| LEDs | |
| System | Power, Ethernet |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Operating Frequency | US/CA: U-NII-1 5150 – 5250 MHz U-NII-2A 5250 – 5350 MHz U-NII-2C 5470 – 5725 MHz U-NII-3 5725 – 5850 MHz Worldwide: 5150 – 5875 MHz |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Dimensions | 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8”) |
"
