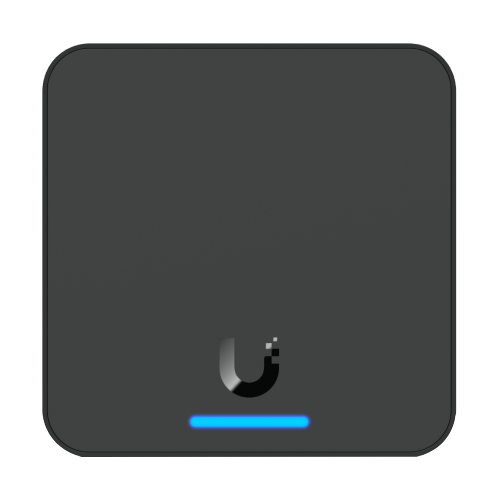

Ubiquiti UA-G3-Flex-B UniFi Access Reader G3 Flex (Black)

Ubiquiti UA-G3-Flex-B UniFi Access Reader G3 Flex (Black)

star star star star star
(5.0)

SKU: UA-G3-Flex-B

$199.00
5 in Stock
Dispatch by Today within:
9 hrs 32 mins

Key Features

  • NFC card/keyfob access (13.56 MHz), BLE mobile unlock, keypad PIN, Touch Pass

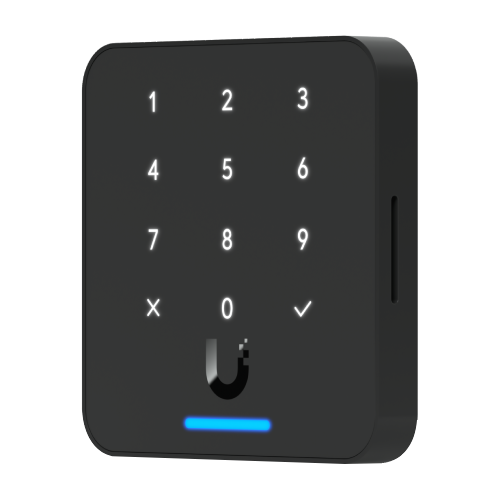

  • Integrated capacitive keypad (12 buttons) and speaker
  • RGB LED indicators for status and alerts
  • PoE-powered via Ethernet (44‑57 V, max consumption ~5 W)
  • Weather-resistant (IP55), built for indoor/outdoor installation
  • Compact and lightweight (~84 x 84 x 40.8 mm, 165 g)
  • Compatible with UniFi Access Controller and Access Hub
  • Flexible mounting: wall, gang box, or junction box
Brand Ubiquiti Networks
Management Application Access
Compatible Devices UniFi Access devices
Max. Power Consumption 5W
Weight 165 g (5.8 oz)
Recommended usage Outdoor
DC voltage range 44 – 57 V
Power over Ethernet (PoE) Yes
NFC Card & Keyfob Access
PIN Access
Apple/Google Wallet
Mobile Unlock
NDAA Compliant
UL 294 Level Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weatherproofing IP55
Mechanical
Weight 165 g (5.8 oz)
Enclosure Material Polycarbonate, glass, aluminium alloy
Mount Material Polycarbonate, aluminum alloy
Mounting Wall (Included) Gang-box, junction box (Optional)
Hardware
Ambient Operating Temperature -30 to 60° C (-22 to 140° F)
Ambient Operating Humidity 5 to 90% noncondensing

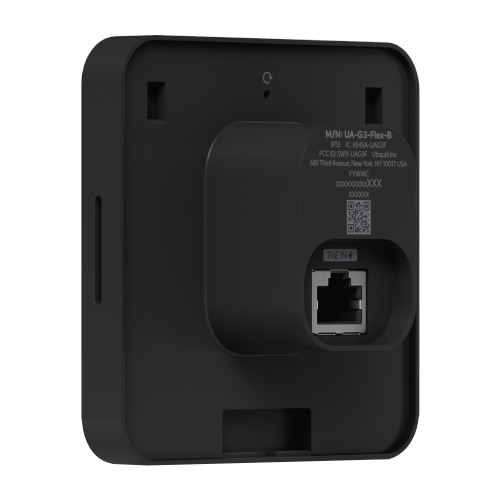

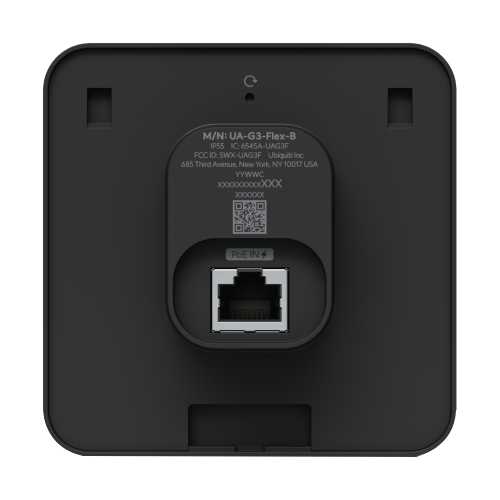

Networking Interface (1) 10/100 MbE RJ45 port
Connectivity BLE 4.1 NFC
Power Method PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Supported Voltage Range 44—57V DC
ESD/EMP Protection Air: ±15kV, contact: ±8kV
Sensors (12) Capacitive buttons
Speaker
LEDs R/G/B/W Learn More
Button (1) Factory-reset
NFC Frequency 13.56 MHz
NFC Read Range < 30 mm (1.18”)
NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-G3-Flex V01
Software
Management Application Access
Dimensions 84 x 84 x 40.8 mm (3.3 x 3.3 x 1.6″)
