Ubiquiti UVC-AI-DSLR Ubiquiti UniFi Camera AI DSLR

Ubiquiti UVC-AI-DSLR Ubiquiti UniFi Camera AI DSLR

Ubiquiti UVC-AI-DSLR Ubiquiti UniFi Camera AI DSLR

SKU: UVC-AI-DSLR

Only 5 products left!

Regular price $1,499.00

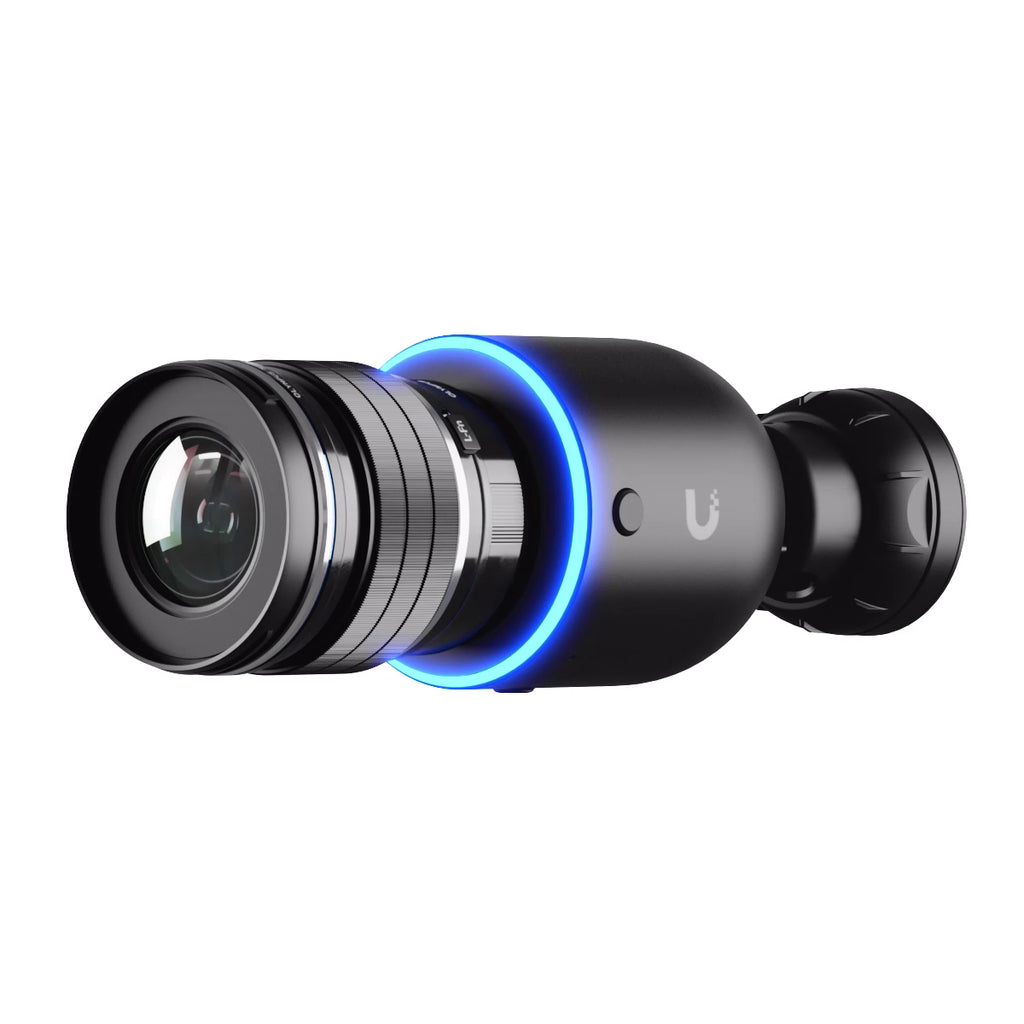

The UVC‑AI‑DSLR is a premium 4K surveillance camera featuring a 4/3″ 10 MP CMOS sensor and a choice of fast prime lenses. Designed for ultra-sharp imaging at long distances, it offers exceptional clarity, powerful low-light performance, and customizable optical options to suit specific deployment needs.

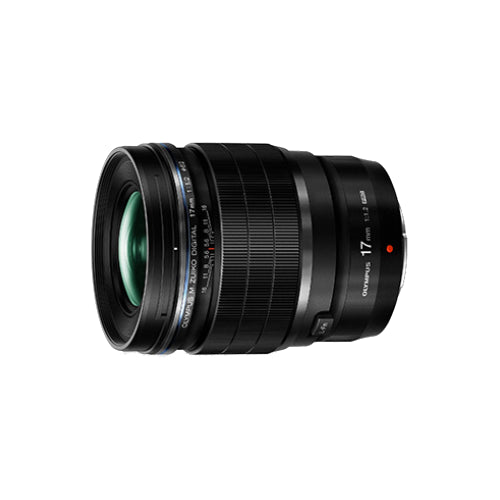

The system includes a choice between a 17 mm or 45 mm M. Zuiko Digital ED f/1.2 PRO lens, providing either wide-angle (52° field of view) or long-distance (21.6° horizontal) coverage. All optics are mounted in a high-quality aluminum body and can be enclosed in an optional IPX5-rated outdoor case for weather-resistant use.

Powered via PoE+, it supports advanced AI-based event detection—including people, vehicles, and license plate recognition—and offers two-way audio via built-in mic and speaker. The camera is managed seamlessly via UniFi Protect.

  • 4K UHD resolution (8 MP) at 30 fps
  • 4/3″ high-sensitivity image sensor
  • Interchangeable M. Zuiko f/1.2 PRO lenses: 17 mm wide (52° view) or 45 mm long-range (21.6° view)
  • Advanced AI analytics: people, vehicles, license plates
  • Two-way audio (disabled when in outdoor case)
  • Robust aluminum housing with optional IPX5 outdoor enclosure
  • Powered via PoE+ (37–57 V DC, max 17.8 W)
  • Managed via UniFi Protect software and mobile apps
Dispatch in: Calculating...
  • guaranteeQuality checked
  • Flat ShippingFlat on all products
  • Free return Within 30 days

Dimensions
Without mount: Ø80 x 89 mm (Ø3.1 x 3.5") With mount: Ø80 x 153 mm (Ø3.1 x 6") M. Zuiko Digital ED 17 mm PRO: Ø68.2 x 87 mm (Ø2.7 x 3.4") M. Zuiko Digital ED 45 mm PRO: Ø70 x 84.9 mm (Ø2.8 x 3.3") Outdoor case: Ø91.6 x 196.3 mm (Ø3.6 x 7.7")
Face Recognition
License Plate Recognition
Smart Detections (People, Vehicles, Animals)
Resolution
4K
Field of View
M. Zuiko Digital ED 17 mm PRO: H: 52°, V: 39°, D: 65° M. Zuiko Digital ED 45 mm PRO: H: 21.6°, V: 16.2°, D: 27°
Audio
Two-way audio
Weatherproofing
IPX5 (With the outdoor case)
Mounting
Wall, pole mount (Included) Tripot mount (Optional)

Networking Interface
GbE RJ45 port
Video

Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR/3DNR/NR by motion, masking, text overlay
Max. Frame Rate
30 FPS
Resolution
8MP 3840 x 2160 (16:9)
Optics

Sensor
4/3" 10MP CMOS
Lens
M. Zuiko Digital ED 17 mm ƒ/1.2 PRO M. Zuiko Digital ED 45 mm ƒ/1.2 PRO

Max. Power Consumption
17.77W (With lens working)
Supported Voltage Range
37—57V DC
Power Method
PoE+
Processor
Quad-core Arm® Cortex®-A53 based chip
Pole Mount Diameter
1.5–2" (38–50 mm)
Weight
Without mount: 660 g (1.5 lb) With mount: 820 g (1.8 lb) M. Zuiko Digital ED 17 mm PRO: 390 g (0.9 lb) M. Zuiko Digital ED 45 mm PRO: 410 g (0.9 lb) Outdoor case: 510 g (1.1 lb)
Enclosure Material
Aluminum alloy
Mount Material
Wall mount: aluminum alloy Pole mount: aluminum alloy
Button
(1) Factory-reset (1) Lens release rey
Ambient Operating Temperature
-20 to 40° C (-4 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
Certifications
CE, FCC, IC

The UVC‑AI‑DSLR is a premium 4K surveillance camera featuring a 4/3″ 10 MP CMOS sensor and a choice of fast prime lenses. Designed for ultra-sharp imaging at long distances, it offers exceptional clarity, powerful low-light performance, and customizable optical options to suit specific deployment needs.

The system includes a choice between a 17 mm or 45 mm M. Zuiko Digital ED f/1.2 PRO lens, providing either wide-angle (52° field of view) or long-distance (21.6° horizontal) coverage. All optics are mounted in a high-quality aluminum body and can be enclosed in an optional IPX5-rated outdoor case for weather-resistant use.

Powered via PoE+, it supports advanced AI-based event detection—including people, vehicles, and license plate recognition—and offers two-way audio via built-in mic and speaker. The camera is managed seamlessly via UniFi Protect.

  • 4K UHD resolution (8 MP) at 30 fps
  • 4/3″ high-sensitivity image sensor
  • Interchangeable M. Zuiko f/1.2 PRO lenses: 17 mm wide (52° view) or 45 mm long-range (21.6° view)
  • Advanced AI analytics: people, vehicles, license plates
  • Two-way audio (disabled when in outdoor case)
  • Robust aluminum housing with optional IPX5 outdoor enclosure
  • Powered via PoE+ (37–57 V DC, max 17.8 W)
  • Managed via UniFi Protect software and mobile apps
