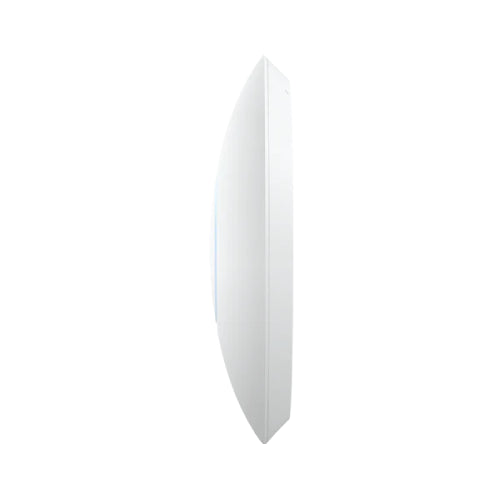

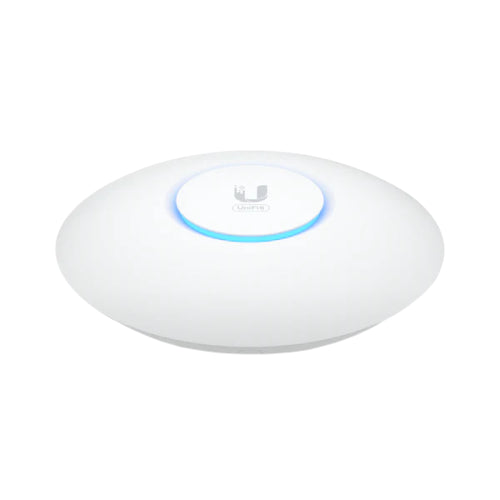

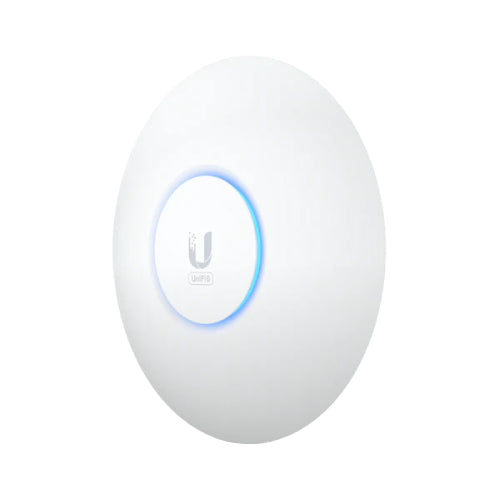

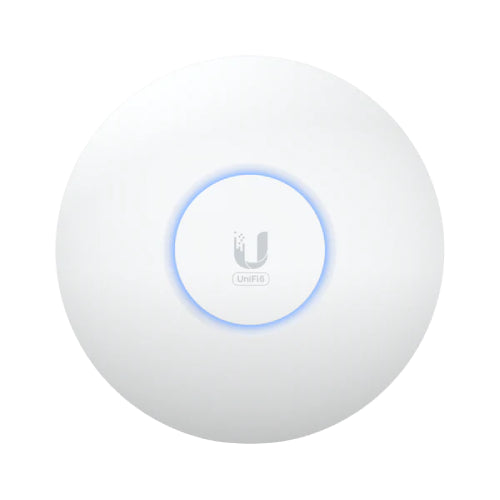

Ubiquiti U6-PLUS (U6+) UniFi WiFi 6 Access Point

Ubiquiti U6-PLUS (U6+) UniFi WiFi 6 Access Point

Ubiquiti U6-PLUS (U6+) UniFi WiFi 6 Access Point

SKU: U6+

Only 5 products left!

Regular price $129.00

Key Features

  • Dual-band Wi-Fi 6 (2.4 GHz and 5 GHz)
  • 2x2 MU-MIMO and OFDMA
  • Up to 2.4 Gbps total wireless throughput
  • 1× Gigabit Ethernet port with 802.3af PoE in
  • Compact, sleek form factor
  • Easy integration with UniFi Network Controller
  • Ideal for wall or ceiling mount installations
Dispatch in: Calculating...
  • guaranteeQuality checked
  • Flat ShippingFlat on all products
  • Free return Within 30 days

Brand Ubiquiti Networks
Model Name U6+
Special Feature WPS
Frequency Band Class Dual-Band
Communication Standard 802.11ax Wireless
Compatible Devices Laptop
Frequency 2.4 GHz
Uses For Product Business
Included Components Access Point U6+, Wall/Ceiling
Connectivity Technology Wi-Fi
WiFi Standard WiFi 6
Spatial Streams 4
Coverage Area 140 m² (1,500 ft²)
Max. Client Count 300+
Uplink GbE
Mounting Ceiling, Wall (Mounts Included)
Power Method PoE
MIMO
5 GHz 2 x 2 (DL/UL MU-MIMO)
2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz 2.4 Gbps (BW160)
2.4 GHz 573.5 Mbps (BW40)
Antenna Gain
5 GHz 5.4 dBi
2.4 GHz 3 dBi
Max. TX Power
5 GHz 23 dBm
2.4 GHz 23 dBm
Max. BSSIDs 8 per Radio
Supported Data Rates
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
Features
Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Hardware
Max. Power Consumption 9W
Supported Voltage Range 44—57V DC
Networking Interface (1) GbE RJ45 port
Weight Device: 338 g (11.9 oz) With mount: 413 g (14.6 oz)
Management Ethernet
Enclosure Material Polycarbonate, aluminum
Mount Material ABS, SGCC steel
LEDs
System White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant
Certifications CE, FCC, IC, Anatel, SRRC
Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz
Ambient Operating Temperature -30 to 60° C (-22 to 140° F)
Ambient Operating Humidity 5 to 95% noncondensing
Software
UniFi Network Version 7.3.76 and later
Dimensions Ø160 x 33 mm (Ø6.3 x 1.3″)


Key Features

  • Dual-band Wi-Fi 6 (2.4 GHz and 5 GHz)
  • 2x2 MU-MIMO and OFDMA
  • Up to 2.4 Gbps total wireless throughput
  • 1× Gigabit Ethernet port with 802.3af PoE in
  • Compact, sleek form factor
  • Easy integration with UniFi Network Controller
  • Ideal for wall or ceiling mount installations
