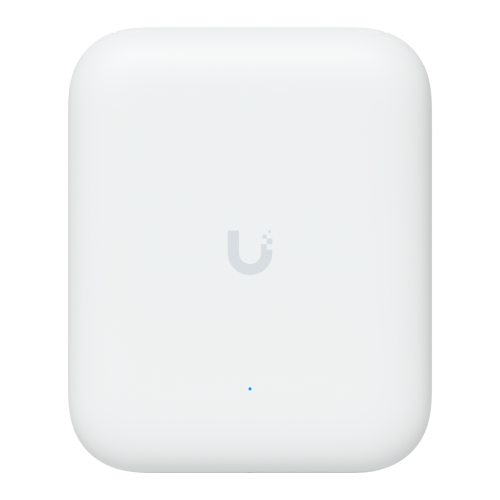

Ubiquiti U7-Pro-Outdoor UniFi WiFi 7 Access Point

Ubiquiti U7-Pro-Outdoor UniFi WiFi 7 Access Point

Ubiquiti U7-Pro-Outdoor UniFi WiFi 7 Access Point

SKU: U7-Pro-Outdoor

Only 5 products left!

Regular price $279.00

Key Featurers

  • Tri-band Wi‑Fi 7: 6 GHz, 5 GHz, 2.4 GHz
  • Extended-range antennas with high-performance output
  • 2.5 GbE PoE+ uplink port
  • Weatherproof, UV-resistant enclosure
  • 4×4 MU‑MIMO on 6 GHz and 5 GHz; 2×2 on 2.4 GHz
  • Supports 300+ concurrent clients
  • Outdoor range: optimized for long-distance wireless coverage
  • Mounting kit included for pole or wall installation
  • Fanless design for silent operation
  • Managed via UniFi Network Controller
Dispatch in: Calculating...
  • guaranteeQuality checked
  • Flat ShippingFlat on all products
  • Free return Within 30 days

Brand Ubiquiti Networks
Model Name U7 Pro Outdoor
Special Feature WiFi 7, Directional Super Antenna
Frequency Band Class Quad-Band
Communication Standard 802.11b
Compatible Devices WiFi Devices
Frequency 2.4 GHz
Uses For Product Outdoor WiFi Access Point
Included Components Articulation Mounting Bracket
Connectivity Technology wireless
WiFi Standard WiFi 7
Spatial Streams 6
Coverage Area 465 m² (5,000 ft²)
Max. Client Count 300+
Uplink 2.5 GbE
Mounting Wall, Pole (Mounts Included)
Weatherproofing IPX6 IP67 (With cable-gland door kit)
Power Method PoE+
MIMO
6 GHz 2 x 2 (DL/UL MU-MIMO)
5 GHz 2 x 2 (DL/UL MU-MIMO)
2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz 5.8 Gbps (BW320)
5 GHz 4.3 Gbps (BW240)
2.4 GHz 688 Mbps (BW40)
Antenna Gain
6 GHz Directional internal: 10 dBi, 90° x 45°
5 GHz Directional internal: 11 dBi, 90° x 45° External omni: 8 dBi, 360° x 15°
2.4 GHz Directional internal: 8 dBi, 90° x 90° External omni: 6 dBi, 360° x 15°
Max. TX Power
6 GHz 26 dBm
5 GHz 26 dBm
2.4 GHz 23 dBm
Max. BSSIDs 8 per Radio
Supported Data Rates
802.11be (WiFi 7) 7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
Features
Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Hardware
Max. Power Consumption 21W
Supported Voltage Range 42.5—57V DC
Networking Interface (1) 1/2.5 GbE RJ45 port
Weight Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb)
Wind Loading 74.6 N at 200 km/h (16.8 lbf at 125 mph)
Pole Mount Diameter 1–2.5″ (25–63.5 mm)
Management Ethernet
Enclosure Material UV-stabilized polycarbonate, aluminum alloy
Mount Material UV-stabilized polycarbonate
LEDs
System (1) Power: White/Blue (4) Mesh signal: Blue
NDAA Compliant
Certifications FCC, IC
Ambient Operating Temperature -30 to 60° C (-22 to 140° F)
Ambient Operating Humidity 5 to 95% noncondensing
Software
UniFi Network Version 9.0.114 and later
Mobile App iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
Dimensions Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6″) With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8″)


Key Featurers

  • Tri-band Wi‑Fi 7: 6 GHz, 5 GHz, 2.4 GHz
  • Extended-range antennas with high-performance output
  • 2.5 GbE PoE+ uplink port
  • Weatherproof, UV-resistant enclosure
  • 4×4 MU‑MIMO on 6 GHz and 5 GHz; 2×2 on 2.4 GHz
  • Supports 300+ concurrent clients
  • Outdoor range: optimized for long-distance wireless coverage
  • Mounting kit included for pole or wall installation
  • Fanless design for silent operation
  • Managed via UniFi Network Controller
