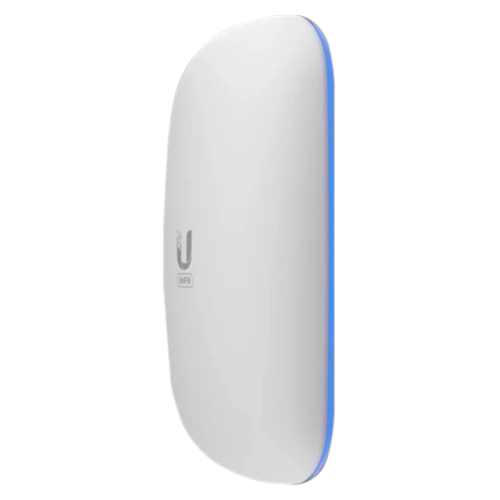

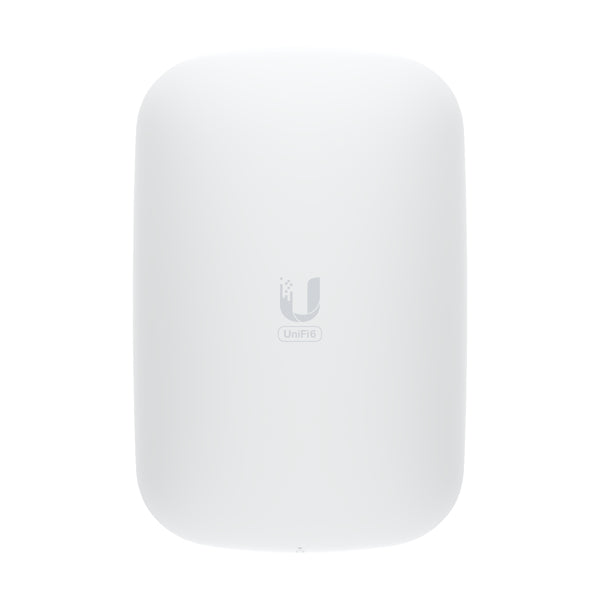

Ubiquiti UniFi U6-Extender WiFi 6 In-Wall Access Point

Ubiquiti UniFi U6-Extender WiFi 6 In-Wall Access Point

Ubiquiti UniFi U6-Extender WiFi 6 In-Wall Access Point

SKU: U6-Extender

Only 5 products left!

Regular price $149.00

Key Features

  • Dual-band WiFi 6 connectivity
  • 5 GHz band (4x4 MU-MIMO and OFDMA) with up to a 4.8 Gbps throughput rate
  • 2.4 GHz band (2x2 MU-MIMO and OFDMA) with up to a 573.5 Mbps throughput rate
  • Fits any standard EU wall outlet
  • Easily extends wireless coverage across large homes or offices
Dispatch in: Calculating...
  • guaranteeQuality checked
  • Flat ShippingFlat on all products
  • Free return Within 30 days

Brand Ubiquiti Networks
Model Name U6-EXTENDER
Special Feature Wall Plug-in Design
Frequency Band Class Dual-Band
Communication Standard 802.11ax Wireless
Compatible Devices Smartphone
Frequency 5 GHz
Uses For Product Home, Business, Outdoor
Connectivity Technology Ethernet
Color White
WiFi Standard WiFi 6
Spatial Streams 6
Coverage Area 115 m² (1,250 ft²)
Max. Client Count 300+
Mounting Wall (Wall Power Socket Included)
Power Method Universal AC input, 100—240V AC, 0.3A Max., 50/60 Hz
MIMO
5 GHz 4 x 4 (DL/UL MU-MIMO)
2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz 4.8 Gbps (BW160)
2.4 GHz 573.5 Mbps (BW40)
Antenna Gain
5 GHz 6 dBi
2.4 GHz 5 dBi
Max. TX Power
5 GHz 26 dBm
2.4 GHz 22 dBm
Max. BSSIDs 8 per Radio
Supported Data Rates
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31 , HT 20/40)
Features
Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Hardware
Max. Power Consumption 11W
Supported Voltage Range 110—240V AC
Weight US: 290 g (10.2 oz) EU: 340 g (12 oz)
Management Bluetooth
Enclosure Material Polycarbonate
LEDs
System White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant
Certifications CE, FCC, IC
Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz
Ambient Operating Temperature -10 to 50° C (14 to 122° F)
Ambient Operating Humidity 5 to 95% noncondensing
Software
UniFi Network Version 6.0.45 and later
Dimensions US: 169.7 x 112.2 x 32.2 mm (6.7 x 4.4 x 1.3″) EU: 169.7 x 112.2 x 77.6 mm (6.7 x 4.4 x 3.1″)


Key Features

  • Dual-band WiFi 6 connectivity
  • 5 GHz band (4x4 MU-MIMO and OFDMA) with up to a 4.8 Gbps throughput rate
  • 2.4 GHz band (2x2 MU-MIMO and OFDMA) with up to a 573.5 Mbps throughput rate
  • Fits any standard EU wall outlet
  • Easily extends wireless coverage across large homes or offices
