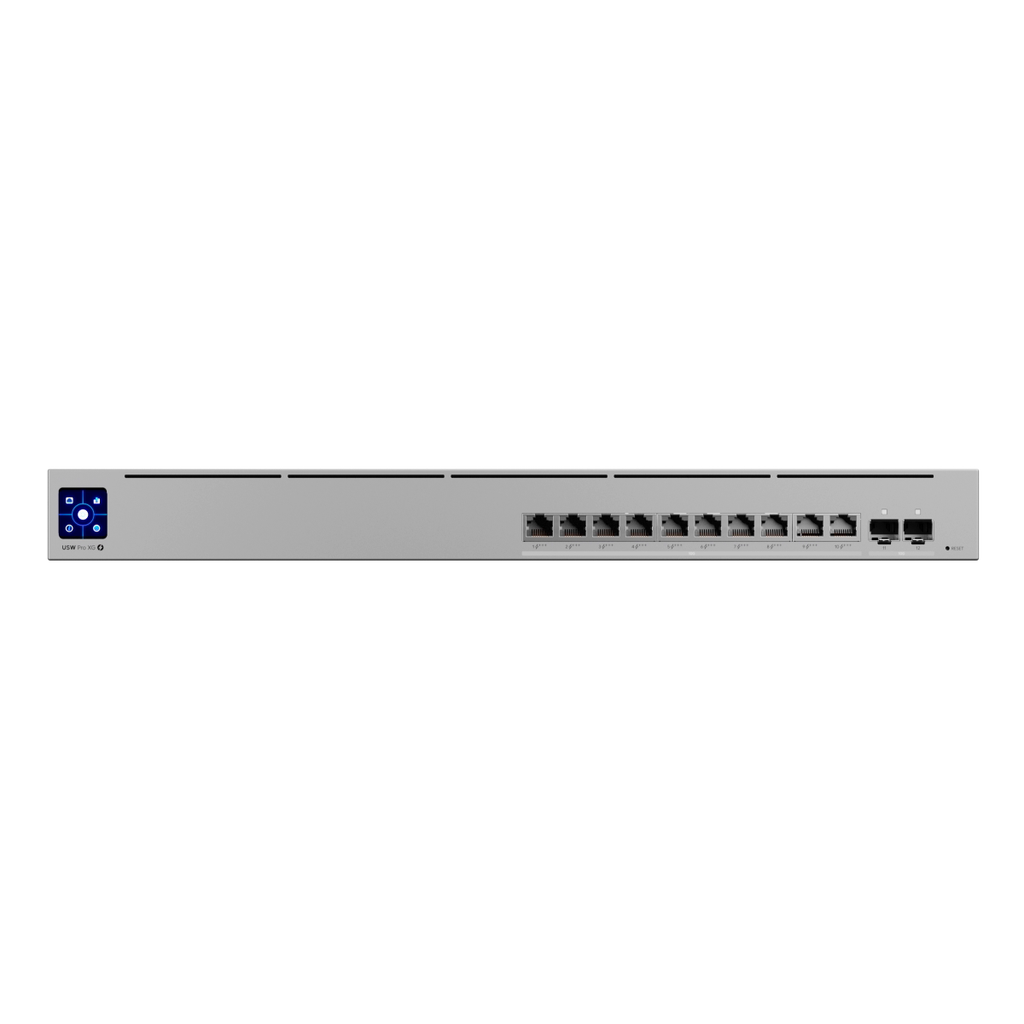

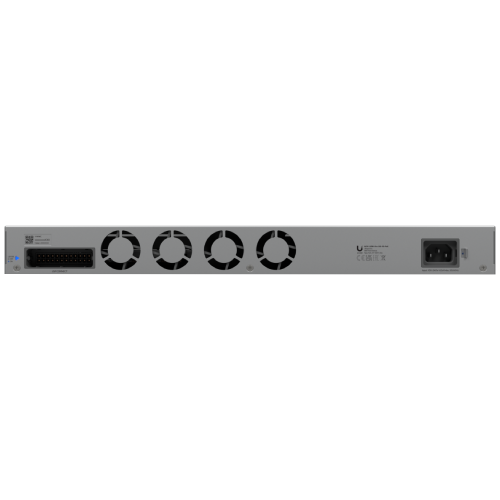

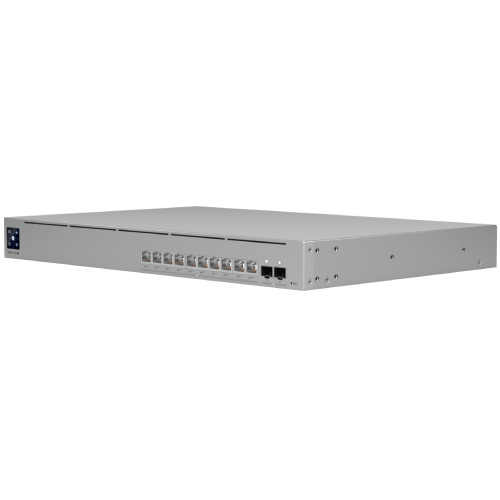

Ubiquiti UniFi Switch Pro XG 10 PoE (USW-Pro-XG-10-PoE)

Ubiquiti UniFi Switch Pro XG 10 PoE (USW-Pro-XG-10-PoE)

Ubiquiti UniFi Switch Pro XG 10 PoE (USW-Pro-XG-10-PoE)

SKU: USW-Pro-XG-10-PoE

Only 5 products left!

Regular price $699.00

The USW-Pro-XG-10-PoE is a high-performance Layer 3 managed switch from Ubiquiti’s UniFi Pro series, built to deliver ultra-fast 10G connectivity with PoE+ support. It features 8× 10G RJ45 ports with 802.3at PoE+, and 2× 10G SFP+ fiber uplink ports, making it ideal for high-speed aggregation and powering critical UniFi devices.

Designed for enterprise deployments, this switch supports Layer 3 static routing, advanced network monitoring, and seamless integration with the UniFi Network Controller. The sleek design includes an intuitive 1.3" touchscreen and efficient thermal management for quiet operation.

  • 8× 10G RJ45 ports with 802.3at PoE+
  • 2× 10G SFP+ uplink ports
  • Layer 3 capabilities (static routing)
  • 1.3" touchscreen for real-time monitoring
  • Silent fan cooling system
  • Centralized control via UniFi Network Controller
  • Rackmount-ready metal housing
Dispatch in: Calculating...
  • guaranteeQuality checked
  • Flat ShippingFlat on all products
  • Free return Within 30 days

Dimensions
442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Port Layout

10 GbE RJ45
10 (All PoE+++) (10G/5G/2.5G/1G/100M)
10G SFP+
2 (10G/1G)
Max. PoE Output
Up to PoE+++

Total PoE Availability
400W
Redundancy
DC Power Backup

Layer 3
Form Factor
Rack mount (1U)
Etherlighting™

Switching Capacity
240 Gbps
Total Non-Blocking Throughput
120 Gbps
Forwarding Rate
179 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
L3 Table Size

ARP Entries
12,000
IPv4 Routes
12,000
Packet Buffer Size
2 MB
Access Lists

IPv4
128
MAC
128

DHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)

LACP Port Aggregation
STP & RSTP
QoS (DSCP)
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection

PoE Ports

PoE+++
10
Max. PoE Wattage per Port by PSE

PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W
Max. Power Consumption
65W (Excluding PoE output) 520W (Including PoE output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 550W
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Weight
Without mounting brackets: 4.6 kg (10.14 lb) With mounting brackets: 4.7 kg (10.36 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2"")
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™

Ethernet
SFP+
LEDs

RPS
System
NDAA Compliant
Certifications
CE, FCC, IC

Application Requirements

UniFi Network
Version 9.1.120 and later

The USW-Pro-XG-10-PoE is a high-performance Layer 3 managed switch from Ubiquiti’s UniFi Pro series, built to deliver ultra-fast 10G connectivity with PoE+ support. It features 8× 10G RJ45 ports with 802.3at PoE+, and 2× 10G SFP+ fiber uplink ports, making it ideal for high-speed aggregation and powering critical UniFi devices.

Designed for enterprise deployments, this switch supports Layer 3 static routing, advanced network monitoring, and seamless integration with the UniFi Network Controller. The sleek design includes an intuitive 1.3" touchscreen and efficient thermal management for quiet operation.

  • 8× 10G RJ45 ports with 802.3at PoE+
  • 2× 10G SFP+ uplink ports
  • Layer 3 capabilities (static routing)
  • 1.3" touchscreen for real-time monitoring
  • Silent fan cooling system
  • Centralized control via UniFi Network Controller
  • Rackmount-ready metal housing
