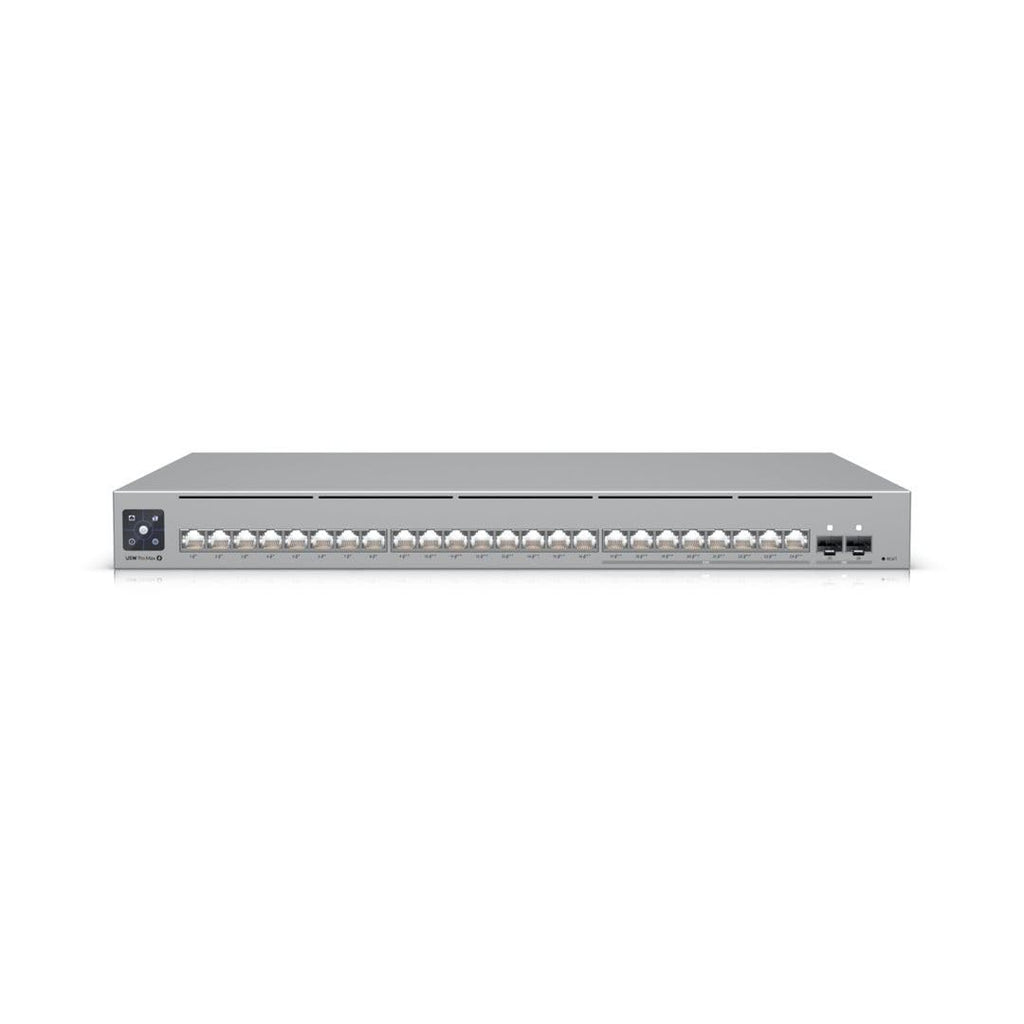

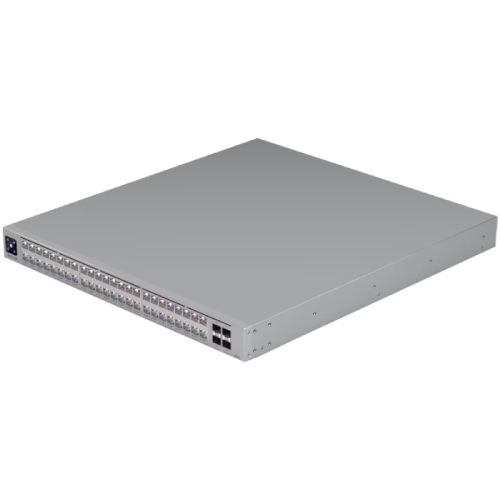

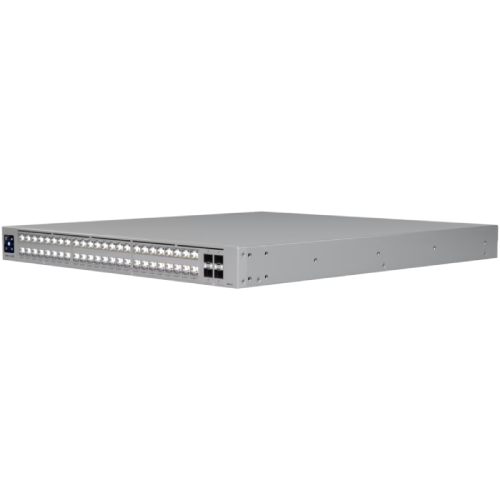

Ubiquiti UniFi Switch Pro XG 48 PoE (USW-Pro-XG-48-PoE)

Ubiquiti UniFi Switch Pro XG 48 PoE (USW-Pro-XG-48-PoE)

star star star star star
(5.0)

SKU: USW-Pro-XG-48-PoE

$2,329.00
16 in Stock
Dispatch by Today within:
9 hrs 32 mins

Key Features

  • Thirty-two (32) 10GbE RJ45 PoE++ ports and sixteen (16) 2.5GbE RJ45 PoE++ ports, with up to 90W per port
  • Total PoE budget of 1080W
  • Layer 3 switching with inter-VLAN routing, DHCP server/relay, and static routes
  • 1.3-inch LCM touchscreen for real-time system status and diagnostics
  • Etherlighting technology for visual port activity indicators (see accessories tab for Etherlighting cables).
  • 920 Gbps switching capacity and 684 Mpps forwarding rate
  • Supports UniFi SmartPower RPS for redundant power (see accessories tab)
  • Supports up to 1,000 VLANs and 32K MAC addresses
  • Rack-mountable 1U form factor.
Brand Ubiquiti Networks
Number of Ports 48
Included Components USW-Pro-XG-48-PoE
Color Grey
Compatible Devices Desktop
Switching Capacity 920 Gbps
Forwarding Rate 684 Mpps
Supported VLANs 1,000
MAC Address Table Size 128,000
2.5 GbE RJ45 16 (All PoE+++) (2.5G/1G/100M/10M)
10 GbE RJ45 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP28 4 (25G/10G/1G)
Max. PoE Output Up to PoE+++
Total PoE Availability 200-240V AC: 1080W 100-120V AC: 972W
Redundancy DC Power Backup
Layer 3
Form Factor Rack mount (1U)
ARP Entries 128,000
IPv4 Routes 256,000
Packet Buffer Size 8 MB
IPv4 256
Layer 3 Features
DHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)
Layer 2 Features
LACP Port Aggregation

STP & RSTP
QoS (DSCP)
Pro AV Profiles
Advanced IGMP Configuration
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
Max. PoE Wattage per Port by PSE
PoE 15.4W
PoE+ 30W
PoE++ 60W
PoE+++ 90W
Hardware
Power Method (1) Universal input, 100—240V AC
Power Input Method AC input
Power Supply AC/DC, internal, 1,350W
Supported Voltage Range 100—240V AC
Management Ethernet AR
Weight 8.7 kg (15.4 lb), 8.8 kg (15.7 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
LCM Display 1.3″ touchscreen
ESD Protection Air: ± 30kV, contact: ± 20kV
Ambient Operating Temperature -5 to 40° C (23 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
Etherlighting
Ethernet
SFP28
RPS
NDAA Compliant
Certifications CE, FCC, IC
Dimensions 442 x 480 x 44 mm (17.4 x 18.9 x 1.7″)
