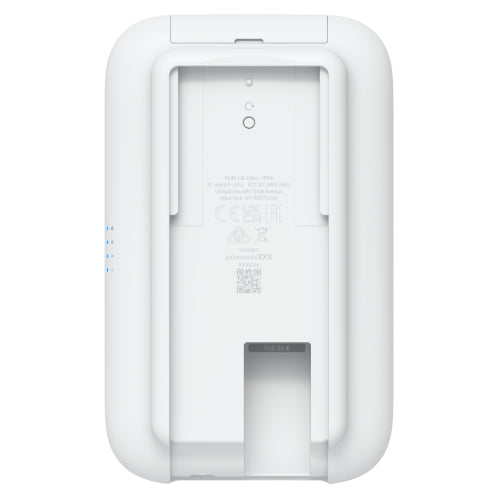

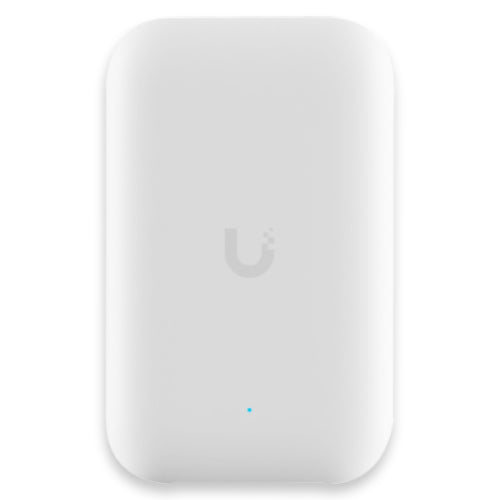

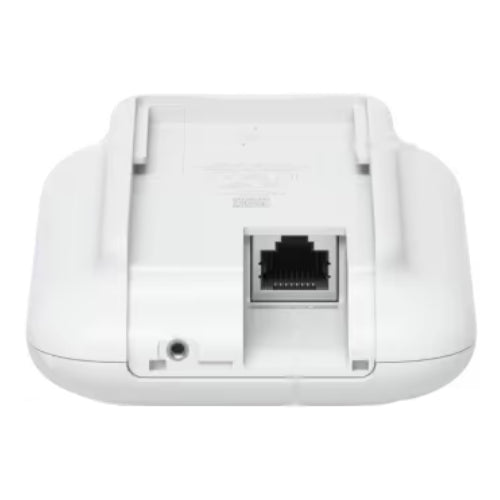

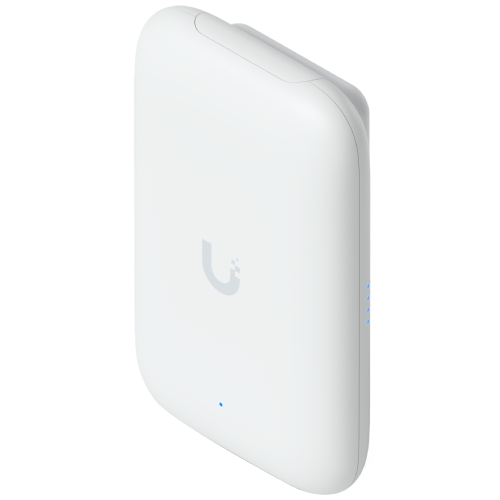

Ubiquiti UK-Ultra UniFi Swiss Army Knife Ultra Indoor/Outdoor WiFi 5 Access Point

Ubiquiti UK-Ultra UniFi Swiss Army Knife Ultra Indoor/Outdoor WiFi 5 Access Point

Ubiquiti UK-Ultra UniFi Swiss Army Knife Ultra Indoor/Outdoor WiFi 5 Access Point

SKU: UK-Ultra

Only 5 products left!

Regular price $89.00

Key Features

  • Dual‑band Wi‑Fi 5 with 2×2 MU‑MIMO
  • Up to 300 Mbps on 2.4 GHz and 866 Mbps on 5 GHz
  • Covers approximately 115 m² (1,250 ft²) using internal antenna
  • Supports 200+ simultaneous devices
  • 1× Gigabit Ethernet port with PoE (44–57 V)
  • Two RP‑SMA antenna connectors for optional external antennas
  • Weatherproof IPX6 rating and wind resilience up to 200 km/h
  • Compact, weather-resistant UV‑stabilized polycarbonate enclosure
  • Mountable on wall, ceiling, or pole
  • Seamless integration with UniFi Network Controller
Dispatch in: Calculating...
  • guaranteeQuality checked
  • Flat ShippingFlat on all products
  • Free return Within 30 days

Brand Ubiquiti Networks
Model Name UK-ULTRA
Special Feature Bluetooth, QoS
Frequency Band Class Dual-Band
Communication Standard 802.11ac Wireless
Compatible Devices Notebook, Tablet, Smartphone
Frequency 5 GHz
Uses For Product Home, Business
Included Components Access Point,Mounting Kits
Connectivity Technology Ethernet
WiFi Standard WiFi 5
Spatial Streams 4
Coverage Area 115 m² (1,250 ft²)
Max. Client Count 200+
Uplink GbE
Mounting Ceiling, Wall, Pole, Table (With Accessory) (Mounts Included) Desktop Stand (Optional)
Weatherproofing IPX6
Power Method PoE
MIMO
5 GHz 2 x 2 (DL MU-MIMO)
2.4 GHz 2 x 2 (DL MU-MIMO)
Max. Data Rate
5 GHz 866.7 Mbps (BW80)
2.4 GHz 300 Mbps (BW40)
Antenna Gain
5 GHz 6.1 dBi
2.4 GHz 4.7 dBi
Max. TX Power
5 GHz 20 dBm
2.4 GHz 20 dBm
Max. BSSIDs 8 per Radio
Supported Data Rates
802.11ac (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
Features
Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Hardware
Max. Power Consumption 8W
Supported Voltage Range 44—57V DC
Networking Interface (1) GbE RJ45 port
Weight 173 g (6.1 oz)
Wind Loading 33.2 N at 200 km/h (7.5 lbf at 125 mph)
Pole Mount Diameter 1~2″ (25–50 mm)
Antennas (1) Internal antenna (2) RP-SMA connectors
Management Ethernet
Enclosure Material UV-stabilized polycarbonate
Mount Material Polycarbonate, SGCC steel, plastic
LEDs
System (1) Power: White/Blue (4) Mesh Signal: Blue
Channel Bandwidth HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz)
NDAA Compliant
Certifications CE, FCC, IC, Anatel
Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz
Ambient Operating Temperature -40 to 60° C (-40 to 140° F)
Ambient Operating Humidity 5 to 95% noncondensing
Software
UniFi Network Version 7.5.187 and later
Dimensions 137 x 84 x 34 mm (5.4 x 3.3 x 1.3″)
