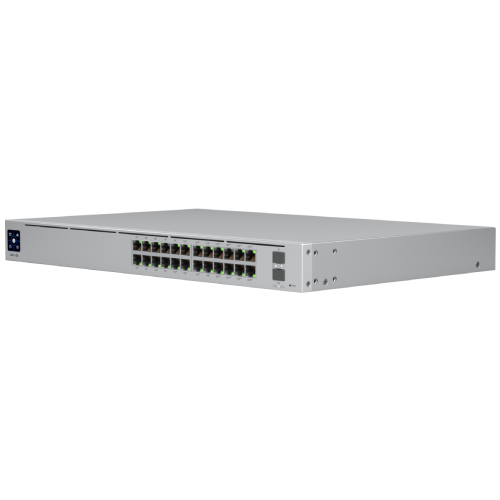

Ubiquiti UniFi 24 Port Pro Switch (USW-Pro-24)

Ubiquiti UniFi 24 Port Pro Switch (USW-Pro-24)

Ubiquiti UniFi 24 Port Pro Switch (USW-Pro-24)

SKU: USW-Pro-24

Only 5 products left!

Regular price $399.00

Key Features

  • 24× Gigabit RJ45 ports
  • 2× 10G SFP+ uplink ports
  • Layer 3 switching with static routing
  • 1.3" touchscreen for device insights and status
  • Silent thermal cooling (fanless for quiet operation)
  • Rackmount-ready with enterprise build quality
  • Managed via UniFi Network Controller
Dispatch in: Calculating...
  • guaranteeQuality checked
  • Flat ShippingFlat on all products
  • Free return Within 30 days

Brand Ubiquiti Networks
Number of Ports 24
Color Silver
Compatible Devices Desktop
Switch Type Managed, Fixed, PoE, Layer 2/3
1 GbE RJ45 24 (1G/100M/10M)
10G SFP+ 2 (10G/1G)
Redundancy DC Power Backup
Layer 3
Form Factor Rack mount (1U)
Switching Capacity 88 Gbps
Total Non-Blocking Throughput 44 Gbps
Forwarding Rate 65 Mpps
Supported VLANs 1000
MAC Address Table Size 16000
ARP Entries 768
IPv4 Routes 64
Packet Buffer Size 2 MB
IPv4 128
MAC 128
DHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)
LACP Port Aggregation
STP & RSTP
QoS (DSCP)
Pro AV Profiles
Advanced IGMP Configuration
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
Max. Power Consumption 30W
Power Method (1) Universal input, 100—240V AC, 50/60 Hz
Power Input Method AC input
Power Supply AC/DC, internal, 36W
Supported Voltage Range 100—240V AC
Management Ethernet AR
Heat Dissipation (Excluding PoE Output) 102.36 BTU/hr
Weight 3.5 kg (7.7 lb),3.6 kg (7.9 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 400~1200 mm (15.7-47.2″)
LCM Display 1.3″ touchscreen
ESD Protection Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature -5 to 45° C (23 to 113° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant
Certifications CE, FCC, IC, Anatel
UniFi Network Version 5.12.11 and later
Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7″)


Key Features

  • 24× Gigabit RJ45 ports
  • 2× 10G SFP+ uplink ports
  • Layer 3 switching with static routing
  • 1.3" touchscreen for device insights and status
  • Silent thermal cooling (fanless for quiet operation)
  • Rackmount-ready with enterprise build quality
  • Managed via UniFi Network Controller
