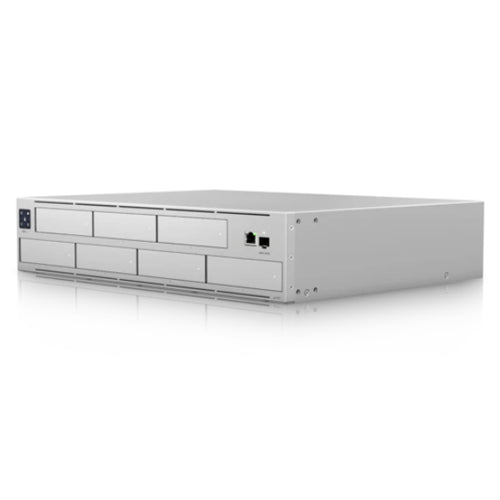

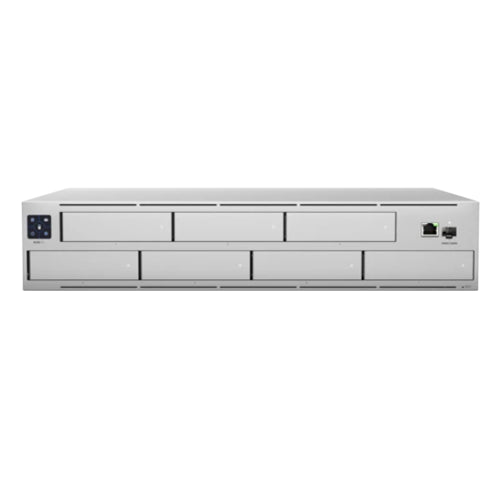

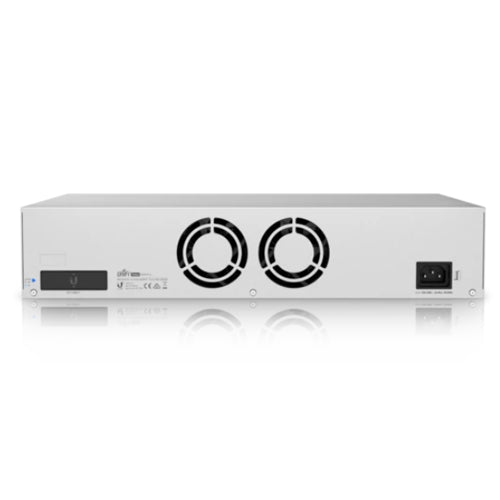

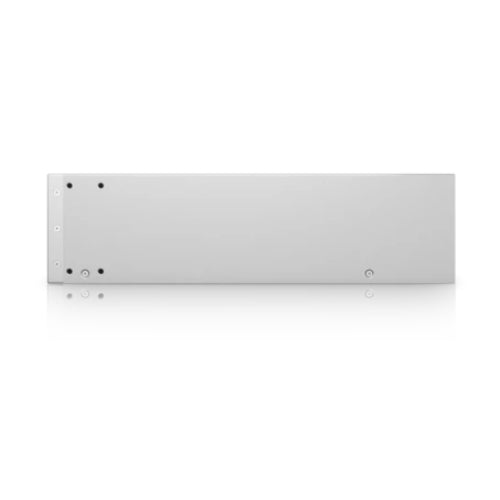

Ubiquiti UniFi Protect UNVR-PRO Network Video Recorder Pro

Ubiquiti UniFi Protect UNVR-PRO Network Video Recorder Pro

Ubiquiti UniFi Protect UNVR-PRO Network Video Recorder Pro

SKU: UNVR-Pro

Only 5 products left!

Regular price $499.00

The UNVR‑Pro is a rack-mountable 2RU enterprise NVR designed for robust video surveillance environments. It integrates the UniFi Protect platform and delivers centralized video recording and storage with high reliability.

Featuring seven 2.5″/3.5″ HDD/SSD bays (up to 8 TB per drive) with support for RAID 1, 5, or 10, the unit efficiently stores footage from up to 60 Full HD cameras or 24 4K cameras, offering up to 60 days of retention depending on camera count and drive capacity. It includes a 1.3-inch touchscreen display for direct event preview and system control.

  • Supports 60 HD or 24 4K cameras
  • Seven internal drive bays with automated RAID (1, 5, 10) support
  • Rear panel 10G SFP+ port and GbE RJ45 port for network connectivity
  • Built-in Bluetooth for simplified setup
  • Internal 200 W AC power supply, max 160 W power consumption
  • Drive power budget up to 135 W to support multiple HDDs/SSDs
  • Rugged steel 2U rack-mount chassis for enterprise environments
  • Factory‑tested ESD/EMP protection (±12 kV air, ±8 kV contact)
  • Operates in temperatures from –5 °C to 40 °C
  • Touchscreen display for onsite management
Dispatch in: Calculating...
  • guaranteeQuality checked
  • Flat ShippingFlat on all products
  • Free return Within 30 days

Dimensions
442 x 325 x 87 mm (17.4 x 12.8 x 3.4")
UniFi Application Suite

Protect
Access
Managed Cameras
(70) HD (35) 2K (24) 4K
Managed Access Hubs
150
Storage Capacity
(7) 3.5" drive bays
Data Protection
Vantage Point
Networking Interface
(1) 10G SFP+ port (1) GbE RJ45 port
Power Redundancy

Form Factor
Rack mount (2U)
Door Access Support

Hard Drive Capacity
(7) 2.5/3.5" HDD / SSD support
Max. Power Budget for Drives
135W
Max. Power Consumption
160W
Power Method
(1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A
Power Supply
AC/DC, internal, 200W
Processor
Quad ARM® Cortex®-A57 cores at 1.7GHz
Memory
8 GB
Management
Ethernet
Display
1.3" touchscreen
Weight
Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.5 kg (20.8 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Certifications
CE, FCC, IC

The UNVR‑Pro is a rack-mountable 2RU enterprise NVR designed for robust video surveillance environments. It integrates the UniFi Protect platform and delivers centralized video recording and storage with high reliability.

Featuring seven 2.5″/3.5″ HDD/SSD bays (up to 8 TB per drive) with support for RAID 1, 5, or 10, the unit efficiently stores footage from up to 60 Full HD cameras or 24 4K cameras, offering up to 60 days of retention depending on camera count and drive capacity. It includes a 1.3-inch touchscreen display for direct event preview and system control.

  • Supports 60 HD or 24 4K cameras
  • Seven internal drive bays with automated RAID (1, 5, 10) support
  • Rear panel 10G SFP+ port and GbE RJ45 port for network connectivity
  • Built-in Bluetooth for simplified setup
  • Internal 200 W AC power supply, max 160 W power consumption
  • Drive power budget up to 135 W to support multiple HDDs/SSDs
  • Rugged steel 2U rack-mount chassis for enterprise environments
  • Factory‑tested ESD/EMP protection (±12 kV air, ±8 kV contact)
  • Operates in temperatures from –5 °C to 40 °C
  • Touchscreen display for onsite management
