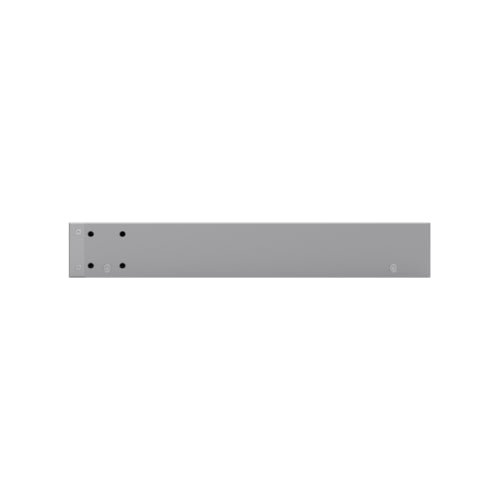

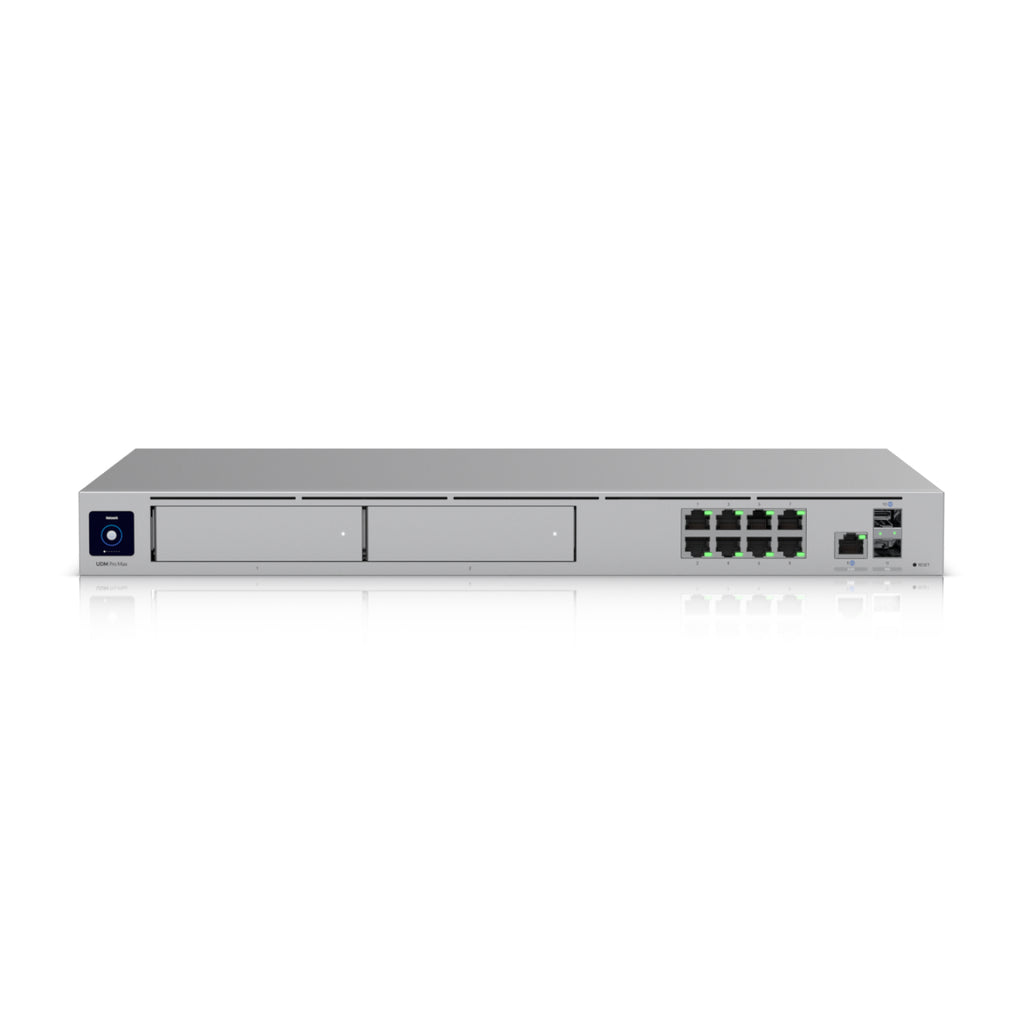

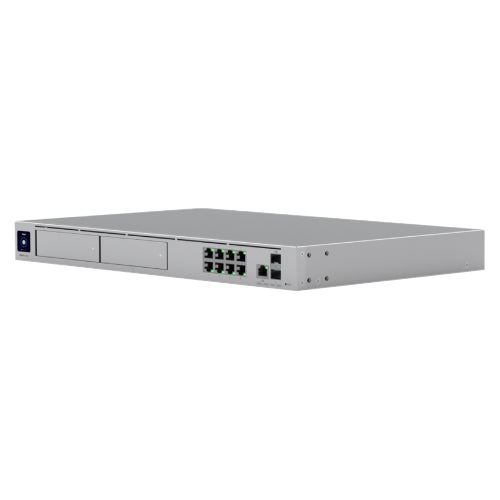

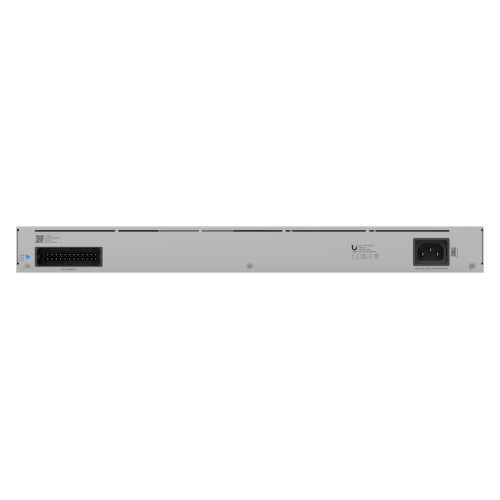

Ubiquiti UniFi Dream Machine Pro Max (UDM-Pro-Max)

Ubiquiti UniFi Dream Machine Pro Max (UDM-Pro-Max)

Ubiquiti UniFi Dream Machine Pro Max (UDM-Pro-Max)

SKU: UDM-Pro-Max

Only 5 products left!

Regular price $599.00

Push the boundaries of network performance with the Ubiquiti Dream Machine Pro Max, offering powerful 5 Gbps routing, multi-WAN load balancing, and enhanced storage options. Designed for large-scale networks, the Pro Max builds on the Pro model with advanced features like dual NVR bays, RAID data protection, and a 10G SFP+ port. Whether for business or high-traffic environments, the UDM-Pro-Max combines performance, security, and seamless UniFi integration.

  • Full UniFi suite for easy device management
  • 5 Gbps routing with IDS/IPS security
  • 2 10G SFP+ ports for ultra-fast connectivity
  • (8) GbE RJ45 LAN ports
  • (1) 2.5 GbE RJ45 for WAN connectivity
  • Multi-WAN load balancing for reliability
Dispatch in: Calculating...
  • guaranteeQuality checked
  • Flat ShippingFlat on all products
  • Free return Within 30 days

Dimensions
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
UniFi Application Suite

Network
Protect
Access
Talk
Connect
Managed UniFi Devices
200+
Managed Cameras
(50) HD (25) 2K (15) 4K
Managed Access Hubs
150
Simultaneous Users Connected
2,000+
Max. WAN Port Count
8
Default WAN Ports
(1) 10G SFP+ (1) 2.5 GbE RJ45
Port Layout

1 GbE RJ45
8 (1G/100M/10M)
2.5 GbE RJ45
1 (2.5G/1G/100M/10M)
10G SFP+
2 (10G/1G)
IDS/IPS Throughput
5 Gbps
Form Factor
Rack mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover DC Power Backup


Stateful Firewall
Application-Aware Layer 7 Firewall
DPI & Traffic Identification
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Content Filtering
Intrusion Prevention (IPS/IDS)
Ad Blocking
IDS/IPS Signatures
55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation

License-Free SD-WAN
Site-to-Site VPN

Site Magic
IPsec
OpenVPN
VPN Server

Identity Endpoint One-Click VPN
Teleport Zero-Configuration VPN
WireGuard
OpenVPN
L2TP
VPN Client

OpenVPN
WireGuard

Multi-WAN Load Balancing
Shadow Mode (VRRP) High Availability
Dynamic Routing

OSPF
BGP
Advanced QoS
Multicast DNS (mDNS)
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Integrated RADIUS Server
RADIUS over TLS (RadSec)
Additional Internet Failover with UniFi LTE Backup
Internet Quality and Outage Reporting
MAC Address Table Size
4,000
Policy-based WAN and VPN Routing
Customizable DHCP Server
IPv6 ISP Support
IGMP Proxy

NVR Storage
(2) 3.5" NVR HDD bays Built-in 128 GB SSD for Faster Experience
Max. Power Consumption
60W
Power Method
(1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A
Power Supply
AC/DC, internal, 100W
Supported Voltage Range
100—240V AC
Processor
Quad-core ARM® Cortex®-A57 at 2.0 GHz
System Memory
8 GB
On-board Storage
32 GB eMMC 128 GB SSD (Integrated)
Weight
4.7 kg (10.4 lb)
Enclosure Material
Aluminium CNC, SGCC steel
Mount Material
SGCC steel
LCM Display
1.3" touchscreen
Management
Ethernet Bluetooth
LEDs

Ethernet
SFP+
RPS
PSU
HDD
Button
(1) Factory-reset
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Certifications
CE, FCC, IC, Anatel, SRRC

Push the boundaries of network performance with the Ubiquiti Dream Machine Pro Max, offering powerful 5 Gbps routing, multi-WAN load balancing, and enhanced storage options. Designed for large-scale networks, the Pro Max builds on the Pro model with advanced features like dual NVR bays, RAID data protection, and a 10G SFP+ port. Whether for business or high-traffic environments, the UDM-Pro-Max combines performance, security, and seamless UniFi integration.

  • Full UniFi suite for easy device management
  • 5 Gbps routing with IDS/IPS security
  • 2 10G SFP+ ports for ultra-fast connectivity
  • (8) GbE RJ45 LAN ports
  • (1) 2.5 GbE RJ45 for WAN connectivity
  • Multi-WAN load balancing for reliability
