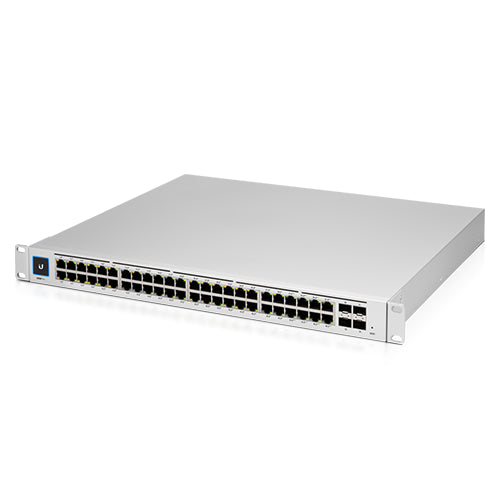

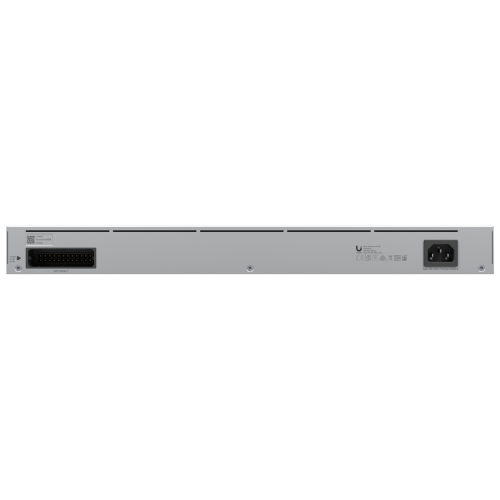

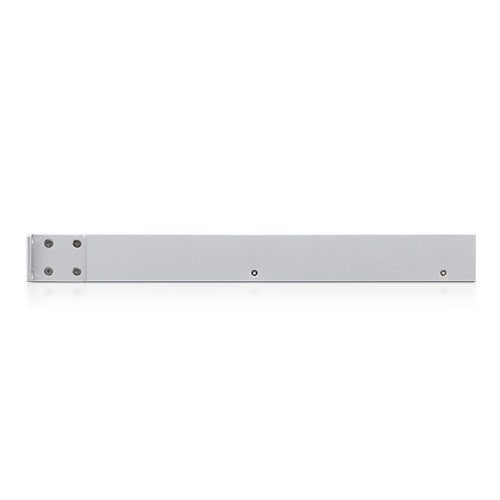

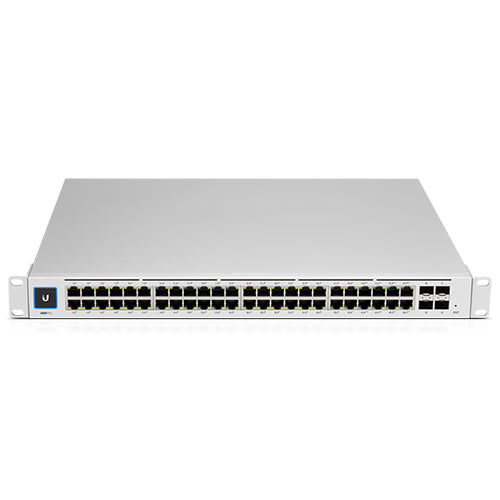

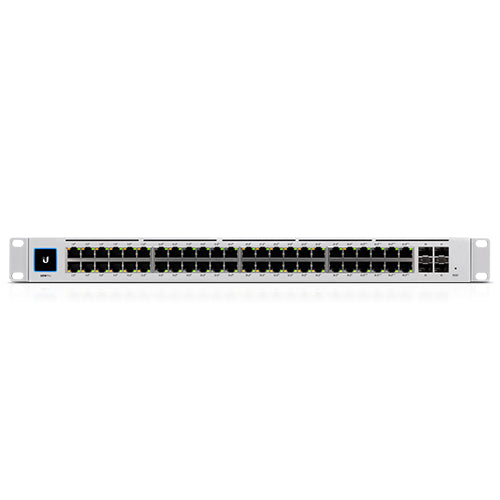

Ubiquiti USW-PRO-48-POE UniFi Gen2 48 Port PoE Gigabit Network Switch

Ubiquiti USW-PRO-48-POE UniFi Gen2 48 Port PoE Gigabit Network Switch

star star star star star
(5.0)

SKU: USW-Pro-48-PoE

$999.00
5 in Stock
Dispatch by Today within:
9 hrs 32 mins

Key Features

  • 48 Gigabit Ethernet ports with PoE support
  • 4 high-speed 10G SFP+ uplink ports
  • Intelligent power distribution
  • Rack-mountable 1U design
  • Quiet cooling system
  • Compatible with UniFi Network management
Brand Ubiquiti Networks
Number of Ports 48
Included Components Other
Switch Type Managed Layer 3 PoE Switch
Platform Not Machine Specific
Layer 3 Yes
Form Factor Rack mount (1U)
Max. PoE Output Up to PoE++
1 GbE RJ45 48 (40 PoE+; 8 PoE++) (1G/100M/10M)
10G SFP+ 4 (10G/1G)
Total PoE Availability 600W
Redundancy DC Power Backup
Switching Capacity 176 Gbps
Total Non-Blocking Throughput 88 Gbps
Forwarding Rate 131 Mpps
Supported VLANs 1000
MAC Address Table Size 16000
ARP Entries 4000
IPv4 Routes 1000
Packet Buffer Size 4 MB
IPv4 128
DHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)
LACP Port Aggregation
STP & RSTP
QoS (DSCP)
Pro AV Profiles Play, Dante
Advanced IGMP Configuration
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
PoE Ports/PoE+ 40
PoE Ports/PoE++ 8
Max. PoE Wattage per Port by PSE/PoE 15.4W
PoE+ 32W
PoE++ 64W
Max. Power Consumption 60W (Excluding PoE Output)
Power Method (1) Universal input, 100—240V AC,
Power Input Method AC input
Power Supply AC/DC, internal, 660W
Supported Voltage Range 100—240V AC
Management Ethernet AR
Weight 6.2 kg (13.7 lb),6.3 kg (13.9 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 600 – 1,200 mm (23.6- 47.2″ )
LCM Display 1.3″ touchscreen
Ambient Operating Temperature -5 to 40° C (23 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant
Certifications CE, FCC, IC, Anatel
UniFi Network Version 5.10.5 and later
Dimensions 442 x 400 x 44 mm (17.4 x 15.7 x 1.7″)
