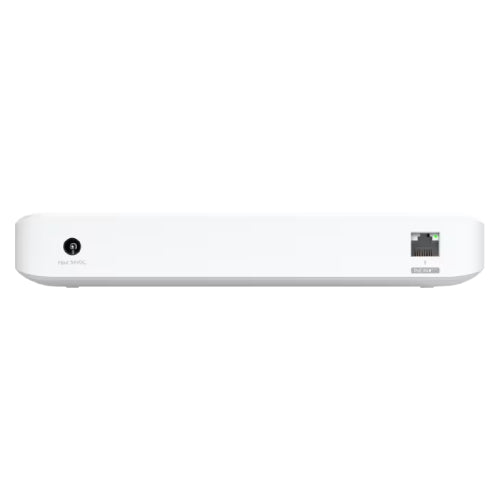

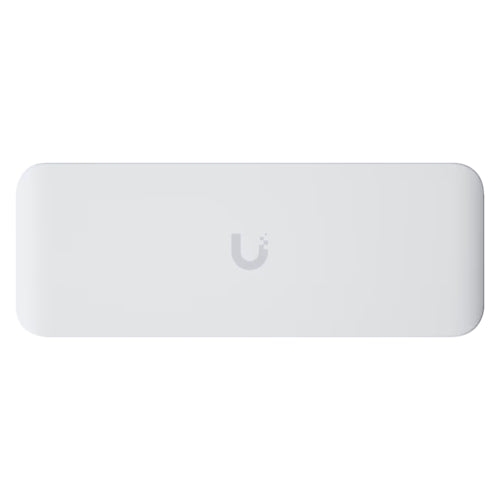

Ubiquiti USW-Ultra UniFi 8-Port Managed GbE PoE+ Access Switch

Ubiquiti USW-Ultra UniFi 8-Port Managed GbE PoE+ Access Switch

star star star star star
(5.0)

SKU: USW-Ultra

$129.00
5 in Stock
Dispatch by Today within:
9 hrs 32 mins

Key Features

  • 5× Gigabit RJ45 ports
  • PoE input on Port 1 (802.3bt)
  • PoE output on Port 5 (802.3af)
  • Compact and fanless design
  • Managed via UniFi Network Controller
  • Layer 2 switching with VLAN, QoS, and traffic monitoring

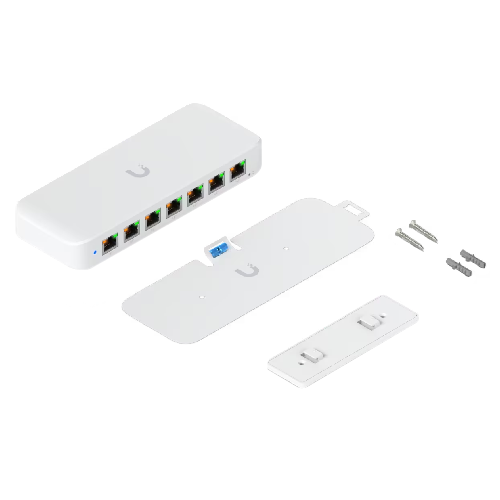

  • Flexible mounting options (wall, desk, or rack with adapter)
Brand Ubiquiti Networks
Number of Ports 8
Included Components Hardware Kit, AC power adapter
Color White
Compatible Devices Desktop, Laptop, Router
Switching Capacity 16 Gbps
Total Non-Blocking Throughput 8 Gbps
Forwarding Rate 12 Mpps
Supported VLANs 256
1 GbE RJ45 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M)
Max. PoE Output Up to PoE+
Total PoE Availability PoE++ input: 42W PoE+ input
Form Factor Compact desktop, wall, magnetic
MAC Address Table Size 4000
STP & RSTP
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
Port Isolation
Port Mirroring
Jumbo Frames
Loop Protection
PoE+ 30W
Max. Power Consumption 9W
Power Method (1) AC/DC adapter (Excluded) (1) PoE++
Power Input Method DC Input PoE
Supported Voltage Range 50—57V DC/PoE
Management Ethernet
Heat Dissipation (Excluding PoE Output) 30.708 BTU/hr 27.296 BTU/hr
Weight Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz)
Enclosure Material Polycarbonate
Mount Material Polycarbonate
Ambient Operating Temperature -30 to 60° C (-22 to 140° F) 60W
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant
Certifications CE, FCC, IC, Anatel
UniFi Network Version 8.0.28 and later
Dimensions 203 x 76 x 33 mm (8 x 3 x 1.3″)
